DCS Automatic Packing Machine
DCS Automatic Packing Machine

DCS Automatic Packing Machine


Model: DCS Series

packing weight: 15-50kg/bag

packing speed: 6-12bags/min

Certification: CE & SGS & ISO

Product Description

DCS series automatic packing machine used in feed mill plant

Henan Richi Machinery DCS automatic packing machine used in feed mill plant, has the characteristics of reasonable structure, beautiful appearance, stable operation, energy saving, convenient operation and accurate weighing.

Feed Pellet Weighing and Packing Machine Application

The automatic feed pellet weighing and packing machine is suitable for large and medium sized feed pellet production plants. It is always applied to a automatic weighing and packing system combined with the transport mechanism and the sewing machine. The automatic weighing and packing machine can pack feed pellets, wood pellets, fertilizer granules and other particle material and powder material with good fluidity. With an excellent performance, it has been adopted by a great many large feed pellet production factories.

DCS Automatic Packing Machine Details

DCS Automatic Packing Machine
DCS automatic packing machine, which is suitable for quantitative weighing and packaging of pellets and powder materials, is a professional quantitative weighing and packaging equipment. Packing accuracy is high, speed is fast and efficiency is high.

Features

1. Microprocessor controlled rationed packing scales,compact structure, small footprint.

2. This product is widely used in industries such as grain, feed and chemicals.

3. Intelligent weighing instrument is adopted to ensure high precision and stable performance.

4. Functions of automatic error correction, alarm for out of tolerance and zero tracing are available.

5. Display for gross weight, net weight and count of bags are available,anti-vibration design, stable and precise packing..

6. Be able to store various formulas, simple operation and high packing rate.

7. Gravity feeding mode featuring fast speed and high precision is adopted.

8. Return air port is reserved to prevent raise of dust and improve work site environment.

9. The product mainly consists of feeding unit, scale hopper, buffer and bag picking unit, pneumatic system, sensor, control cabinet, conveyor and sealing unit.

Parameter

Model DCS-A50/Z DCS-B50/M DCS-B50/D DCS-C50/S
Power 3KW 3KW 3KW 3KW
Feeding method Belt Belt Belt Belt
Packing Weight 20-50kg/bag 20-50kg/bag 20-50kg/bag 15-50kg/bag
Packing speed 6-8bags/minute 6-8bags/minute 6-8bags/minute 10-12bags/minute
Packing Precision Static ±0.1%;Dynamic ±0.2% Static ±0.1%;Dynamic ±0.2% Static ±0.1%;Dynamic ±0.2% Static ±0.1%;Dynamic ±0.2%
Display resolution 10G 10G 10G 10G
Temperature range -10 to 40℃ -10 to 40℃ -10 to 40℃ -10 to 40℃

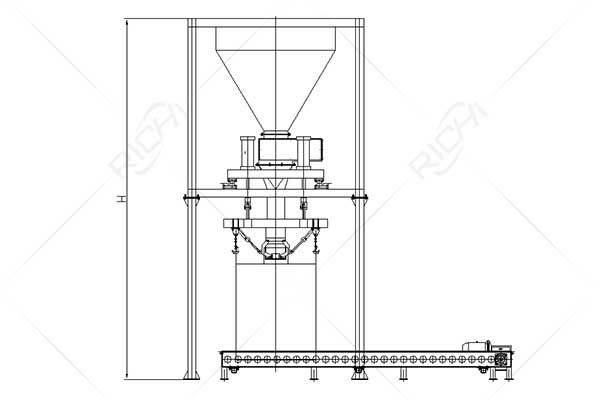

Installation height Refer to the drawing Refer to the drawing Refer to the drawing Refer to the drawing
Voltage 380V/50HZ& Customized 380V/50HZ& Customized 380V/50HZ& Customized 380V/50HZ& Customized
Air Supply 0.4-0.6Mpa 2m³/h 0.4-0.6Mpa 2m³/h 0.4-0.6Mpa 2m³/h 0.4-0.6Mpa 2m³/h
