TGSS Scraper Conveyor Supplier
TGSS Scraper Conveyor Supplier

TGSS Scraper Conveyor Supplier


Model: TGSS Series

Capacity: 12-400t/h

Certification: CE & SGS & ISO

Application: Widely used for level conveying in feed,chemicals, grain depots, ports, malt, oil industry powder and small particles.

Product Description

Henan Richi Machinery TGSS Series Scraper Conveyor is a kind of continuous conveying equipment for bulk materials in enclosed rectangular section shell by means of moving scraper chain. It is mainly used for conveying powder, granular and small pieces of materials.

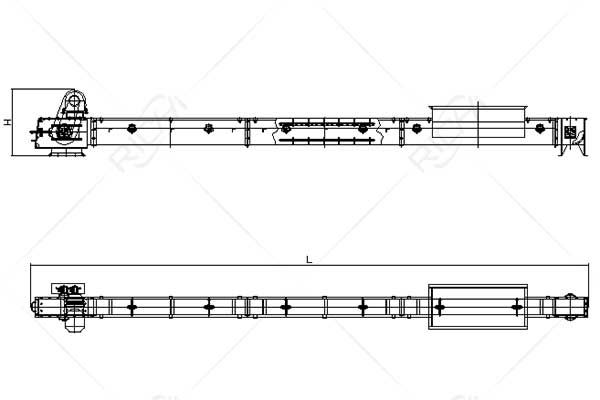

TGSS Scraper Conveyor Supplier Details

TGSS Scraper Conveyor Supplier
TGSS Series Scraper Conveyor can be widely used in the horizontal transportation of bulk materials in feed factories, flour factories, rice factories, oil factories, starch factories, grain depots, port terminals and so on.

Features

1. Anti-clogging structure to improve flexibility, safety and tightness.

2. Equipped with heavy-duty starter and anti-blocking and anti-chain breaking alarm device.

3. The guide rail is made of specially treated wear-resistant materials or paved with high polymer wear-resistant plates.

4. Scraper and recycling cup at the chain to reduce residue, the scraper is made of polyurethane material with wear resistance and low noise.

5. Chains are our patented products with high strength, high wear resistance and long conveying distance.

6. The tail of the machine is equipped with chain tensioning device, which is easy to operate and prolongs the service life of the chain.

7. Flexible design at the back of the machine to eliminate residue.

Parameter

Model Chain speed(m/s) Power Reducer Conveying distance(m) Conveying volume(m³/h)
TGSS20 0.32 2.2 XWD5-35-2.2 3-8 40
TGSS20 0.32 3 XWD5-35-3 8-18 40
TGSS20 0.32 4 XWD5-35-4 18-29 40
TGSS20 0.32 5.5 XWD6-35-5.5 29-47 40
TGSS20 0.32 7.5 XWD7-35-7.5 47-71 40
TGSS25 0.32 3 XWD5-35-3 3-11 65
TGSS25 0.32 4 XWD5-35-4 11-18 65
TGSS25 0.32 5.5 XWD6-35-5.5 18-29 65
TGSS25 0.32 7.5 XWD6-35-7.5 29-44 65
TGSS25 0.32 11 XWD7-35-11 44-70 65
TGSSK32 0.45 4 XWD4-23-4 3-12 97
TGSSK32 0.45 5.5 XWD5-23-5.5 12-19 97
TGSSK32 0.45 7.5 XWD6-23-7.5 19-29 97
TGSSK32 0.45 11 XWD7-23-11 29-46 97
TGSSK32 0.45 15 XWD8-23-15 46-66 97
