SCY Drum Type Pre-cleaner
SCY Drum Type Pre-cleaner

SCY Drum Type Pre-cleaner


Model: SCY Series

Power: 0.75/1.5kw

Capacity: 15-50t/h

Certification: CE, SGS, ISO

Product Description

RICHI SCY Series Drum Type Pre-cleaner is widely applied to granular material cleaning in industries like flour mills, feed mill, grain storage, etc.The machine can be used at the intake section of the processing plant or silos to eliminate coarse impurities like pebbles, paper, sticks, wood pieces, leaves, cobs, etc. Our company supplies Drum Pre Cleaner in various models for use in cleaning of different products like seeds grains, etc.Drum Pre-cleaner is directly sold by the richi machinery factory. The factory price is trustworthy!

working principle

Henan Richi Machinery SCY series drum type pre-cleaner is mainly composed of box, frame, inclined drum, transmission device, support device and other components. When the material falls on the rotating drum from the feeding port, the material is in full contact with the drum and rolls on the drum due to the action of the rotating drum. The material smaller than the screen hole passes through the inner drum and falls on the outer drum. The materials that cannot pass through the sieve holes are gradually pushed toward the outlet end by the rotation of the inclined drum, and finally they are collected by the hopper to enter the curtain crusher through the material pipe to continue to be broken. The materials falling on the outer drum are continuously screened by the outer drum. Fine powder and fine particles smaller than the sieve holes pass through the sieve holes and fall into the hopper and enter the granulation bin through the material pipe. Collected by the hopper through the material pipe to enter the next process.

SCY Drum Type Pre-cleaner Details

SCY Drum Type Pre-cleaner

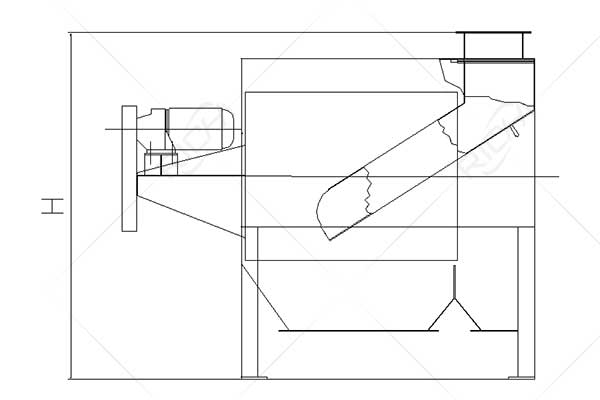

SCY series drum type pre-cleaner is mainly composed of box, frame, inclined drum, transmission device, support device and other components.The machine can be used at the intake section of the processing plant or silos to eliminate coarse impurities like pebbles, paper, sticks, wood pieces, leaves, cobs, etc.

Features

1. Low noise, low energy consumption and stable operation.

2. The access door makes the daily maintenance and repair much easier and simple.

3. here are monitor windows in the side and top of the machine, the operator could easily observe the running condition.

4. We equip the most suitable size of the sieve, to fit different grain raw material, to get the best effect.

5. High capacity, low consumption, small floor space.

Parameter

Model SCY63 SCY80 SCY80*2 SCY100
Power 0.75kw 0.75kw 0.75kw 1.5kw
Capacity 15-30t/h 20-40t/h 20-40t/h 30-50t/h
