Electric Flat Die Pellet Machine
Electric Flat Die Pellet Machine

Electric Flat Die Pellet Machine


Model: FDF

Capacity: 80-1200kg/h

Certification: CE & SGS & ISO

Application: It is widely used in home and small scale farms to make animal feed pellets.

Product Description

With the rapid development of feed pellets industry, flat die pellet mill becomes more and more popular in breeding industry. Featured with the unique advantages of simple structure, small area coverage, competitive price and low consumption, it is a good choice for small-scale industrial production and home use.

Electric Feed Flat Die Pellet Mill is an ideal pelletizing machine mainly used for small-scale production of ruminant and poultry feed pellets, grain feed factory, farm, poultry farm . The raw materials are easy to obtain, like corn, maize, wheat bran, rice, beans, etc. Driven by electric motor makes it more energy-saving and environmental friendly.

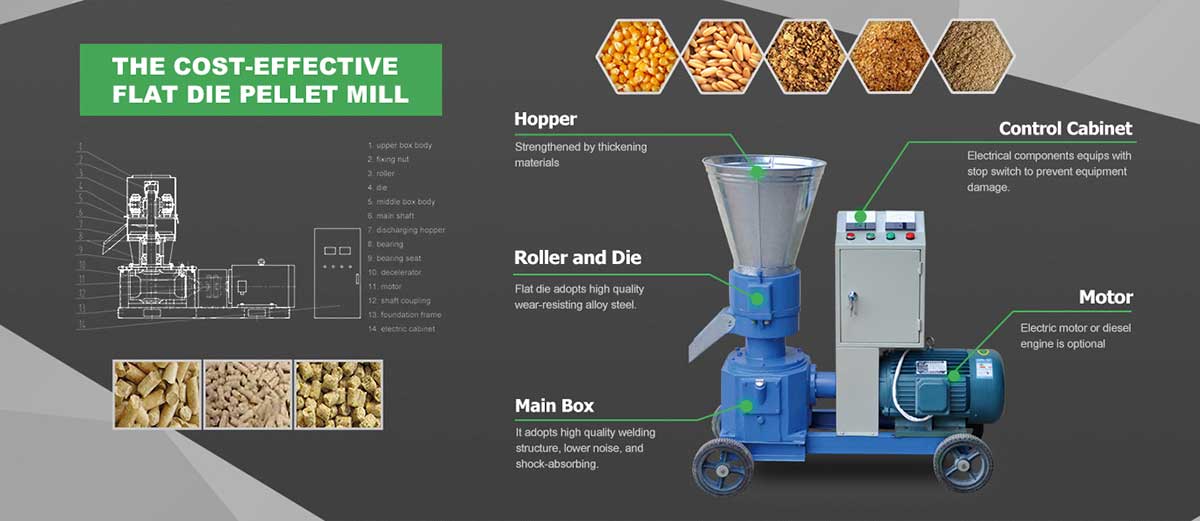

Electric Flat Die Pellet Machine Details

Electric Flat Die Pellet Machine
When you start the machine, the roller or die begin to rotates. They move relatively and form strong pressure and friction.When you feed biomass materials through the hopper, they fall on the flat die and get compressed by the roller, then they are squeezed into the holes on flat die, where they are formed into solid cylindrical pellets.Under the flat die there is a slicer cutting them into certain length. Then the pellets falls down and come out through the outlet.

Features

1. Driven by electric motor makes it more energy-saving and environmentally friendly.

2. The flat die pellet mill is made of wear-resistant material thus having a long service life

3. The pelleting process is visible, so it is convenient to solve problems in time.

4. Simple structure, small area coverage, easy operation and maintenance.

5. Low consumption, competitive price and cost saving.

6. Electric feed flat die pellet mill can process various kinds of solid grain into small feed pellets for animals like cattle, sheep, chicken, rabbit, pig, etc.

7. Less investment. simple operation, easy maintenance, high pelleting rate; Simple structure, wide applicability, cover small space, low noise.

8. Powder feed. no grass meal (or little) liquid can be added for granulation. Moisture same as the raw materials, more conducive to storage.

9. Raw materials. There are more than 20 kinds of dies, suitable to make pellets from different raw materials.

Electric Flat Die Pellet Machine Details

Electric Flat Die Feed Pellet Mill Application

1. Suitable for processing various kinds of solid grain into small feed pellets for animals like cattle, cow, chicken, rabbit, pig, etc.

2. Suitable for making bedding pellets for animal stalls from cardboard.

3. Also suitable for processing biomass material and many other agro wastes into wood pellets for green fuel.

Why Choose Flat Die Pellet Mill

☆ Due to the simple structure design of flat die pellet mill, the maintenance and repair is definitely more convenient and much simpler.

☆ Spare parts are easy to change, less cost for roller and dies.

☆ Flat die pellet mill is mainly suitable for small-scale industrial production and home use, so it has competitive price advantages, also energy and cost saving.

☆ Easy to operate, and the staff training course is much easier.

Parameter

Model Capacity(KG/H) Power ( KW ) Pellet Size ( mm ) Dimensions ( cm )
FDF-125A 80-100 3 Φ2.0 - Φ6.0 66*35*120
FDF-150A 90-150 4 Φ2.0 - Φ6.0 66*35*120
FDF-125B 80-100 3 Φ2.0 - Φ6.0 63*27*75
FDF-150B 90-150 4 Φ2.0 - Φ6.0 65*27*78
FDF-210 200-300 7.5 Φ2.0 - Φ6.0 85*35*91
FDF-230 350-450 11 Φ2.0 - Φ6.0 98*38*94
FDF-260 400-500 15 Φ2.0 - Φ6.0 108*42*104
FDF-300 500-700 18.5 Φ2.0 - Φ6.0 130*51*121
FDF-360 700-800 22 Φ2.0 - Φ6.0 140*56*160
FDF-400 900-1200 30 Φ2.0 - Φ6.0 150*61*180
