SLHY Horizontal Ribbon Mixer
SLHY Horizontal Ribbon Mixer

SLHY Horizontal Ribbon Mixer


Model: SLHY Series

Mixed Weight: 250-2000kg/bat

Certification: CE & SGS & ISO

Application: Used in medium and small scale feed mill

Product Description

SLHY Series Horizontal Ribbon Mixer, Batch mixer suited for blending dry, free-flowing ingredients in feed, food, chemical and pharmaceuticals industries.

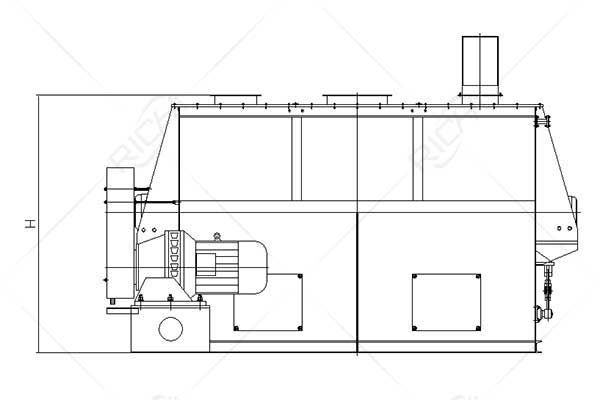

SLHY Horizontal Ribbon Mixer Details

SLHY Horizontal Ribbon Mixer
SLHY Series Horizontal Ribbon Mixer cross section of cylinder round, mixing without dead corner,mixing time: 2-4 minutes,barrel wall plot-free;Mixing homogeneity: CV≤7%, mixing period:3~6 min.

Features

1.Cross section of cylinder round, mixing without dead corner,mixing time: 2-4 minutes,barrel wall plot-free;

2.Enlargement in length opened discharge door at the bottom to reduce residues;

3.Mixing homogeneity: CV≤7%, mixing period:3~6 min.

4.Opening angle greater than 90 degrees, the door self-locking, discharge door does not open at cylinder pressure loss;

5.Optimal rotor structure, even fill of the mixer and no death corner.

6.Return air chute furnished for internal and external pressure balancing.

7.Single shaft screw belt.High evenness.

8.Wide open discharge door.High-efficiency energy-saving.

Parameter

Model SLHY0.5A SLHY1.0A SLHY1.0A SLHY2.5L SLHY5.0L
Power 4kw 7.5kw 7.5kw 15kw 30kw
Mixed weight 250kg/P 500kg/P 500kg/P 1000kg/P 2000kg/P
Volume 0.5m³ 1m³ 1m³ 2.5m³ 5m³
