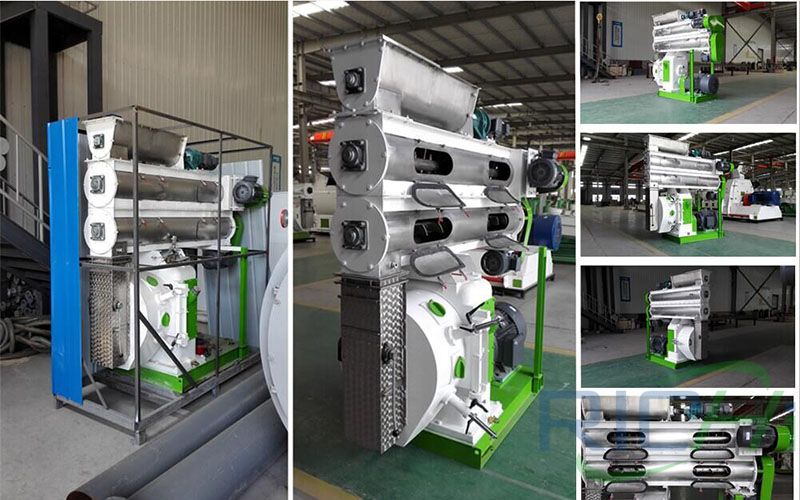

Deliver pellet machine to UK customer

Date: 06/16/2020 09:19:23 From: feed-pellet-plant.com Clicks:

Kindly Reminder: If you are interested in our products, Please get in contact with us

Technical Parameters of feed pellet mill

Items SZLH350
Production Capacity 5t/h
Power of Main Motor 55kw
Power of Feeding Screw Motor 1.5kw
Power of conditioner Motor 6kw
Diameter of ring die Φ350mm
Speed of ring die(r/min) 336r/min
Speed of feeding screw 12-120rpm
Speed of stirrer 350r/min
Pellet specification φ2,φ3,φ4,φ4.5,φ5,φ6,φ8,φ10mm
Amount of roller 2
Diameter of roller Φ165mm
Shaping rate of pellet ≥ 95%
Pulverization rate of pellet ≤12%
Stability of pellet in the water ≥20min
Noise (dB(A)) ≤85dB(A)
Working temperature of ring die ≤85℃
Working pressure of steam 0.1-0.4Mpa
Steam consumption(t/h) ≥0.3
Temperature of steam(℃) 130-150℃
Shape dimension 2235*1010*2445mm
Machine weight 2200kg
Voltage 3phase 380V,50Hz Can be customized)
Control cabinet Included

We are providing all kinds of hammer mill, mixer, dryer, pellet mill, cooling machine, packing machine. Any requirement for animal feed pellet project or biomass pellet project , just contact me freely.

Deliver pellet machine to UK customer
Deliver pellet machine to UK customer

The above is the article for you: Deliver pellet machine to UK customer. If you are interested in our products or project solutions, please contact us. We will give you the best product quality and the best price. Email: enquiry@pellet-richi.com
