30T/H feed mill line for livestock and poultry

Date: 07/08/2020 08:38:46 From: feed-pellet-plant.com Clicks:

Kindly Reminder: If you are interested in our products, Please get in contact with us

The 30T/H livestock and poultry feed production line is a large project. Generally, two production lines will be built, so that if one of the production lines fails, it will not stop production. If the feed pellet production line of 30 tons per hour is converted into an annual output, it will be 200,000 -300,000 tons. Taking the annual output of 300,000 tons as an example, the following is a project for the production of livestock and poultry feed with an annual output of 300,000 tons, for your reference.

1. Brief introduction of 30T/H livestock and poultry feed production line

As the cost of feed accounted for more than 70% of the cost of aquaculture, accelerating the development of the feed industry and promoting new feed processing technologies is an important link to improve the production level of the aquaculture industry. The range of livestock and poultry feed production lines is relatively wide, including livestock full-price pellet feed, aquatic feed and concentrated feed. This project is mainly to meet the needs of pig feed and chicken feed production lines.

1. Construction scale: The annual production and processing of feed is 300,000 tons. Including pig feed 200,000 tons, chicken feed 50,000 tons, and other feed 50,000 tons.

2. Total investment of the project: RMB 95 million

3. Construction period: 18 months.

4. Construction content: including the main production workshop, auxiliary production workshop, raw material warehouse, finished product warehouse, raw material warehouse, finished product warehouse, premix room, office building, employee dormitory, canteen, machine repair room, power distribution room, boiler room, Coal yard, pound house, etc.

5. Floor area: According to the project, the newly-built construction area is 67780.8㎡. among them:

6. Raw material supply

The raw materials required for the products of this project are mainly corn, soybean meal, fish oil, etc., most of the raw materials required are mainly purchased locally, which can be supplied in time, and can also promote the development of the local breeding industry;

2. Technical Engineering Program

1. Production process flow chart

Production process flow chart
Production process flow chart

The equipment is mainly produced by Richi Machinery. The main equipment: crusher, mixer, granulator, puffing machine, batching scale, boiler, etc.

(1) Raw Material Crushing Section:

The feed grinder can grind the raw material ingredients to the required size. The grind fitness is different of different grinders. We supply four types of feed grinders. The hammer mills are suitable for small-sized or medium-sized feed pelletizing plants. The wide chamber fine grinders and water drop hammer mills are usually used in large-sized and medium-sized feed pelletizing factories. The ultra fine feed grinder is designed for grinding raw materials of special aquatic feed.

(2) Feed Material Mixing Section:

Mixing is considered to be one of the essential operations in feed pellet processing. Lack of proper mixing may lead to reduced diet uniformity, affecting the feed pellet quality. We supply two kinds of high efficiency feed mixers: twin-shaft mixer for mixing powdered or particle materials and screw belt mixer for mixing powdered materials. Both of them can be equipped with atomizing spraying system to add needed liquids, which can improve the feed pellet quality.

(3) Feed Pelletizing Section:

Feed pellet mill is the main equipment of the whole production line. There are two common kind of feed pellet mills: ring die feed pellet mill and flat die feed pellet mill. If you want to produce feed pellets with large quantity, the ring die feed pellet mill is the ideal choice. If your demanded quantity is small, you can choose the flat die feed pellet mill. Also, we supply the aquatic feed pellet mill for pressing fish feed pellets and shrimp feed pellets etc. If you have more question about customized feed pellet production requirement, please feel free toleave message or send email for more support.

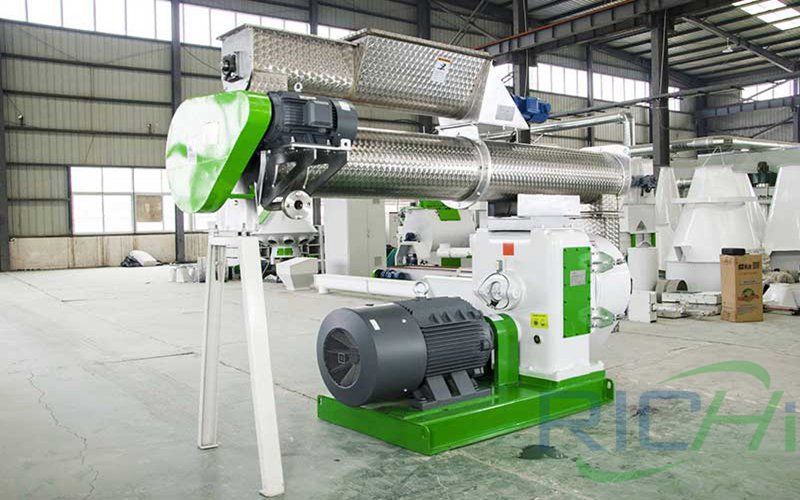

Feed pellet mill
Feed pellet mill

(4) Feed Pellet Cooling Section:

The feed pellets pressed out by the feed pellet mill are hot and moist. They can't be crushed, screened or packed immediately. Counterflow feed pellet cooler is designed to cool or dry the feed pellets. It can decrease the temperature and moisture of the feed pellets, preparing for the following Sectiones.

(5) Feed Pellet Crushing Section:

Different poultry, livestock or aquatic feed pellets are with different sizes. Some big ones should be crushed into small ones. Roll type feed pellet crumbler is just the equipment for feed pellet crushing. Double-roll feed pellet crumbler is suitable for crushing poultry feed, such as chicken feed, duck feed and goose feed etc. Three-roll feed pellet crumbler is suitable to crush aquatic feed including fish feed and shrimp feed etc.

(6) Feed Pellet Screening and Grading Section:

The crushed feed pellets are with different sizes, and there may be some powder. Therotary grading sieve can be used to screen and grade the feed pellets. After processing, you can get the qualified feed pellets without fine powder.

(7) Feed Pellet Packing Section:

The feed pellets should be packed for transporting, storing or selling. Automatic weighing and packing machine can weigh and pack the pellets automatically with high accuracy.

(8) Automatic PLC Control System:

With the automatic PLC control system, the production line is with high efficiency and convenient operation.

The above is the article for you: 30T/H feed mill line for livestock and poultry. If you are interested in our products or project solutions, please contact us. We will give you the best product quality and the best price. Email: enquiry@pellet-richi.com
