Macedonia 1 Ton/H Sheep & Cattle Feed Production Line

Date: 07/06/2020 08:18:02 From: feed-pellet-plant.com Clicks:

Kindly Reminder: If you are interested in our products, Please get in contact with us

We received an email from a Macedonian customer who wanted a 1 ton sheep and cattle feed pellet production line equipment, and hope we can provide them with a quotation for a turnkey project! The production line of 1 ton cattle and sheep feed pellets is a small production line in terms of output. This type of production line has a small investment and sees results, and is especially suitable for small chicken farms, cattle and sheep farms and small feed pellet production plants.

Sheep & Cattle

What equipment will be needed?

Because 1 ton of cattle sheep feed pellet production line includes crushing section, granulation section, cooling section and packaging section. Therefore, the equipment used will be compared. The host equipment includes feed hammer mill, feed pellet machine, cooler, packaging machine, as well as some conveying equipment, dust removal equipment, cleaning equipment and so on. Users can let our engineers design drawings for you according to your budget, and choose whether they are low-profile production lines, standard-match production lines or high-profile production lines.

Production Process

The process of 1 ton cattle and sheep feed pellet production line is very simple, here is to provide a flow chart of 1 ton cattle and sheep feed pellet production line for your reference. Of course, the flow chart is not the only one, it needs to be designed according to your specific situation.

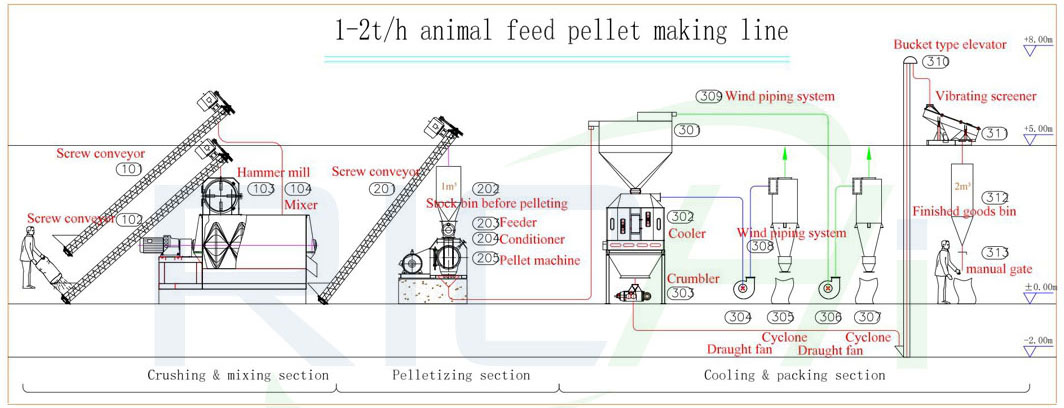

Flow chart of cattle and sheep feed production line
Flow chart of cattle and sheep feed production line

Step 01: Raw Materials Reception and Cleaning Process

The first stage involves receiving and cleaning the raw material such as grain, beans, grass or fish meals used for making pellet feed.

Step 02: Feed Crushing Process

The material is then passed into the hammer mill, where it is ground into a size which is suitable for making feed pellets.

Step 03: Feed Mixing Process

The crushed fodder materials are then passed through a feed mixing machine, where different ingredients are added to the feed raw material to ensure that the finished pellet contains all the required nutrients.

Step 04: Animal Feed Pelleting Process

The pelletization stage is the most important stage in the animal feed mill, since the feed powder is converted into pellets of the desired size and shape. Compared to the flat die feed pellet machine, the ring die feed pellet machine has a larger capacity.

Step 05: Feed Pellets Cooling Process

The feed pellets are produced at a temperature of 88 degree centigrade and have a moisture level of 17-18%. For cooling, drying and storage, the moisture level should be reduced to 10-12% . Hence the feed pellets are passed through the pellet cooler, where they are cooled to a temperature which is close to room temperature, dried to reduce the moisture levels.

Step 06: Feed Pellets Packaging

After the animal feed pellets are produced, a semi automatic packing machine is used to put the pelleted feed in bags so that they can stored or transported to the end customer. A computerized machine will measure the feed of a specific amount for each bag, and it will be pneumatically discharged to the bag for packing. The bag with the pellets will move on a conveyor to the area where machines will automatically stitch the open tops of the bag, so that they can be transported.

Application Case

1.Malawi 1-2T/H Poultry Feed Pellet Line

Name: Malawi

Country: 1-2T/H Poultry Feed Pellet Line

Capacity: 1-2T/H

Date: Nov 27th,2018

Installation cycle: 15 Days

Feed Pellet Size: 2mm, 3mm,4mm,6mm animal feed

Workshop size(L*W*H):6m*3m*7m

Main Raw material:Corn, wheat,Soybean Meal, oil, premix and other Grain.

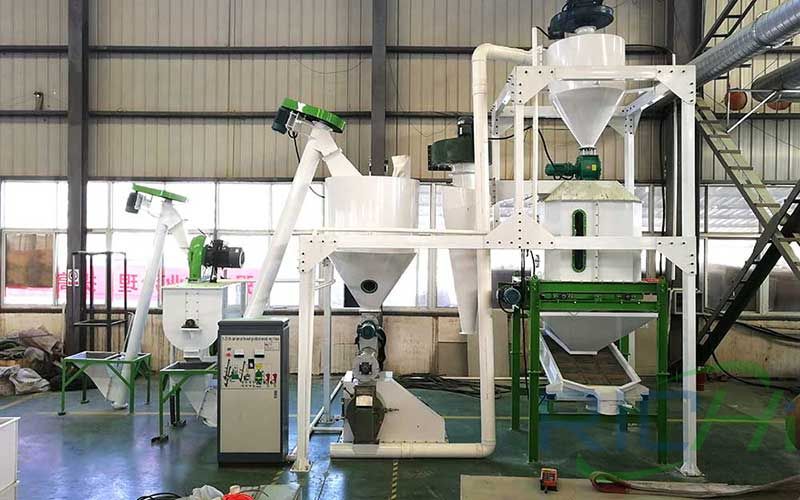

1 Ton/H Sheep & Cattle Feed Production Line
1 Ton/H Sheep & Cattle Feed Production Line

2.Sudan 1-2T/H Poultry Feed Pellet Plant

Name: 1-2T/H Poultry Feed Pellet Plant

Country: Sudan

Capacity: 1-2T/H

Date: April 24th,2018

Installation cycle: 15 Days

Feed Pellet Size: 1-2mm small baby chicken feed, 3mm,4mm,6mm chicken feed

Workshop size(L*W*H):8m*4m*6m

Main Raw material:Corn, wheat,Soybean Meal, and other Grain.

3. 1-1.2T/H Camel Bird Feed Pellet Line Export To Qatar

Name: Bird and camel Feed Pellet Line

Country: Qatar

Capacity: 1-1.2T/H

Date: Aug 8th,2017

Installation cycle: 30 Days

Feed Pellet Size: 2mm, 3mm,4mm,6mm bird and camel feed

Workshop size(L*W*H):6m*3m*7m

Main Raw material:Corn, wheat,Soybean Meal, oil, premix and other Grain.
