Feeding System of Hammer Mill - Feed Pellet Mechanical Engineering

Date: 11/02/2020 08:57:58 From: Clicks:

Kindly Reminder: If you are interested in our products, Please get in contact with us

Hammer mills are among the most common mill types for many applications in the grinding of grain or other biomass raw materials, for example in the production of animal feed or in the food industry. Hammer mills are one of the indispensable equipment in the animal feed pellet production line. The feeding system of hammer mill directly affects the production capacity of the feed mill.

SFSP Fine-Grinding Hammer Mill
SFSP Fine-Grinding Hammer Mill

Tasks of the Feeding System

The feeding system for a hammer mill essentially has four important tasks to fulfil:

1. Distribution of the feed material: The distributed feed of the product over the entire width of the hammer mill has a significant influence on the grinding process, because only in this way the existing impact and screen surface of a hammer mill can be fully utilised. In addition, wear is reduced because the screens and beaters are worn more evenly. An even distribution also leads to an energy-efficient use of the mill’s drive power.

2. Adaptation to product properties: Particularly in product mixtures (e.g. in the post-grinding of animal feed), products that are heavier and easier to grind (e.g. barley and corn) may be present as individual layers in the premix. The feeding system has the task of adjusting the throughput capacity of the mill to the product present in the mixture, so that the mill is always operated at its optimum operating point. For this purpose, the load of the mill motor is monitored and the conveying capacity of the feeding device is controlled on the basis of the motor current (load-dependent dosing).

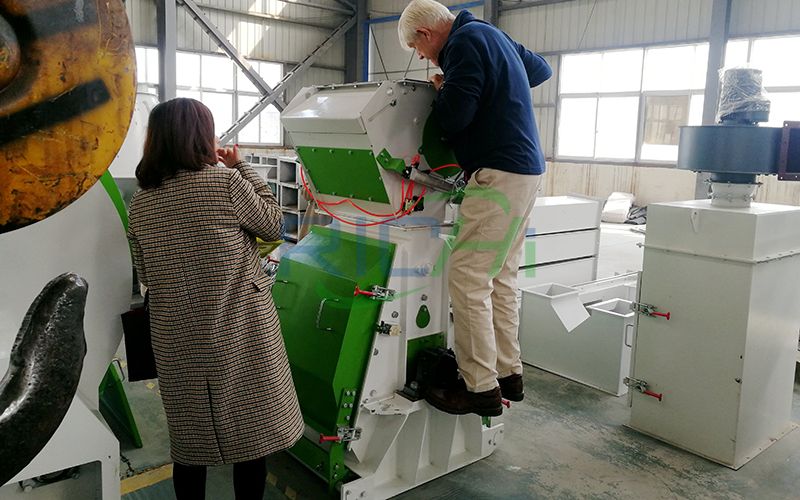

Customers visit sfsp hammer mill
Customers visit sfsp hammer mill

3. Separation of impurities: Due to harvesting, handling, storage, etc., the raw material may contain impurities such as metal parts or stones, which can lead to considerable damage if they get into the mill (e.g. sieve breakage). Contact of foreign matters with the rapidly rotating components of the mill can also lead to sparking and, associated with this, to a risk of fires and explosions. The feeding equipment therefore has the task of reliably separating foreign parts in front of the mill.

4. Aspiration air intake: In addition to charging the mill with the material to be ground, feeding systems are usually also used to supply the aspiration air required for the grinding process. According to European ATEX guidelines, in the event of an explosion, this air intake opening must be designed in such a way that there is no risk of human life being endangered by escaping pressure shocks and/or flames. In addition, whirled up dust could lead to secondary explosions.

Richi Machinery SFSP Hammer Mill

Henan Richi machinery SFSP-series fine grain hammer mill is suitable for corn, soybean, sorghum, wheat, beans, grain grinding, Especially suitable for the pulverization of baby pig, fish feed, poultry and livestock Feed. It's widly used in animal feed processing, brewing, chemical and biological industry.Grain crushing machine, feed crusher for sale factory price is attractive.In addition, The machine structure is simple, fastening durable, safe, reliable with easy installation and simple operation.

Richi Machinery SFSP Hammer Mill
Richi Machinery SFSP Hammer Mill

SFSP Hammer Mill Parameter

Model SFSP56*40a SFSP56*40b SFSP66*60a SFSP66*60b SFSP66*80a SFSP66*80b SFSP66*100 SFSP138*30E SFSP138*40E
Power 30kw 37kw 55kw 75kw 90kw 110kw 132kw 110/132kw 132/160kw
Capacity 3-5T/H 4-6T/H 5-8T/H 6-9T/H 8-10T/H 10-13T/H 12-16T/H 15-20T/H 18-25T/H
Speed 2980r/min 2980r/min 2980r/min 2980r/min 2980r/min 2980r/min 2980r/min 1440r/min 1440r/min

The above is the article for you: Feeding System of Hammer Mill - Feed Pellet Mechanical Engineering. If you are interested in our products or project solutions, please contact us. We will give you the best product quality and the best price. Email:
