Sunflower Pan Sunflower Straw Feed Pellet Process Producing Plant

Date: 02/12/2021 08:40:19 From: Clicks:

Kindly Reminder: If you are interested in our products, Please get in contact with us



1. Sunflower Nutrient Composition Analysis

1.1 Analysis of the nutrient composition of the sunflower plate

The nutrient composition of the threshing sunflower plate is different due to its variety and harvest time. As a nutrient-rich feed material, it generally contains 7%-9% crude protein, 6.5%-10.5% crude fat, 43.9% nitrogen-free extract, 17.7% crude fiber, and 10.1% crude ash, among which crude protein and nitrogen-free The extract content is comparable to grain, and it is the most nutritious part of sunflower plants except sunflower seeds. In addition, the sunflower plate also contains 2.4% to 3.0% pectin and more fructose. Pectin is a complex polysaccharide with rich nutrition and very suitable for animal feed. Fructose can improve the palatability of the sunflower plate. The results of Zhang Runhou and others showed that the nutrient content in sunflower trays exceeds that of green hay but is lower than that of alfalfa hay. See Table 1 for the comparison of conventional nutrient components of sunflower pan, green hay and alfalfa hay in Hetao area of ​​Inner Mongolia.

Table 1 Comparison of conventional nutrient components of sunflower discs, green hay and alfalfa hay in Hetao region of Inner Mongolia (%)

ingredient Dry matter Crude protein Crude fat Crude fiber Crude ash Nitrogen-free extract calcium phosphorus
Sunflower plate 91.38 8.31 2.68 12.40 11.92 43.90 1.41 0.51
Green hay 91.40 6.20 2.50 30.50 5.90 46.30
Alfalfa Hay 88.20 22.50 1.30 28.30 9.00 27.10 1.26 0.25

1.2 Analysis of the nutritional components of sunflower meal

The nutrient content of sunflower meal varies due to the different oil extraction processes. Generally, its energy value can reach 20.64; crude protein is 32.43%, and the content of lysine and tryptophan in amino acids is low, which are 47.0% and 35.5% lower than soybean meal, respectively. The content of methionine and cystine are 53.0% and 41.7% higher than that of soybean meal, respectively; it contains 5.96% of crude fat, and the content of linoleic acid and oleic acid is higher in the fatty acid composition, which are 67.35% and 9.28% respectively. Sunflower meal has good palatability and high nutritional value. It is a good concentrated feed protein supplement for ruminants.

Sunflower Pan and Sunflower Stalk
Sunflower Pan and Sunflower Stalk

1.3 Analysis of the nutritional components of sunflower stalks and sunflower seed hulls

The crude fat content in sunflower stalks and sunflower seed hulls are 1.08% and 0.56%, respectively; the crude protein content is 1.85% and 3.36%, respectively, which is lower than the crude protein in corn stalk and wheat stalk The content of crude fiber, especially the content of lignin, is higher than that of corn stover and wheat stover. It can be seen that sunflower stalks and sunflower seed hulls have low nutritional value and poor digestibility. After crushing, they are not suitable for large-scale use in aquaculture, but their nutritional value can be improved by microbial fermentation. The comparison of the conventional nutrient components of sunflower stalks, sunflower seed husks, corn stalks and wheat stalks in Hetao area of ​​Inner Mongolia is shown in Table 2.

Table 2 Comparison of conventional nutrient components of sunflower stalks, sunflower seed husks, corn stalks and wheat stalks in Hetao region of Inner Mongolia (%)

ingredient Dry matter Crude protein Crude fat Crude ash calcium phosphorus Neutral detergent fiber Acid detergent fiber Lignin
Sunflower stalk 3.46 1.85 0.56 3.47 0.41 0.03 72.71 58.77 20.90
Sunflower Seed Bark 90.71 3.36 0.56 3.47 0.41 0.03 72.71 58.77 20.90
Corn stalks 94.58 4.55 0.55 8.04 0.43 0.06 49.60 36.09 4.02
Wheat straw 93.45 6.14 1.05 10.33 0.46 0.10 57.01 35.84 5.21

1.4 Parameters of Feed Pellet Process Producing Plant Sunflower Pan Feed Pellet Machine

Model Capacity(TPH) Main Motor Power(kw) Feeder Motor Power(kw) Conditioner Power(kw) Dia.of Ring Die(mm) Final Pellet(mm)
SZLH250 1-2 22 0.75 1.5 250 2~12
SZLH320 3-4 37 1.5 2.2 320 2~12
SZLH350 5-7 55 1.5 3 350 2~12
SZLH420 8-12 110 1.5 7.5 420 2~12
SZLH508 10-18 160 2.2 11 508 2~12
SZLH558 15-25 180/200 2.2 11 558 2~12
SZLH558D 14-22 160/180/200 1.5 7.5 558 2~18
SZLH678 20-30 220/250 2.2 11 678 2~12
SZLH678D 15-25 200/220/250 2.2 11 673 2~18
SZLH768 25-40 280/315 2.2 11 768 2~12
SLZH858 25-42 280/315 2.2 15 858 2~18

1.5 Features of Feed Pellet Process Producing Plant Feed Pellet Machine

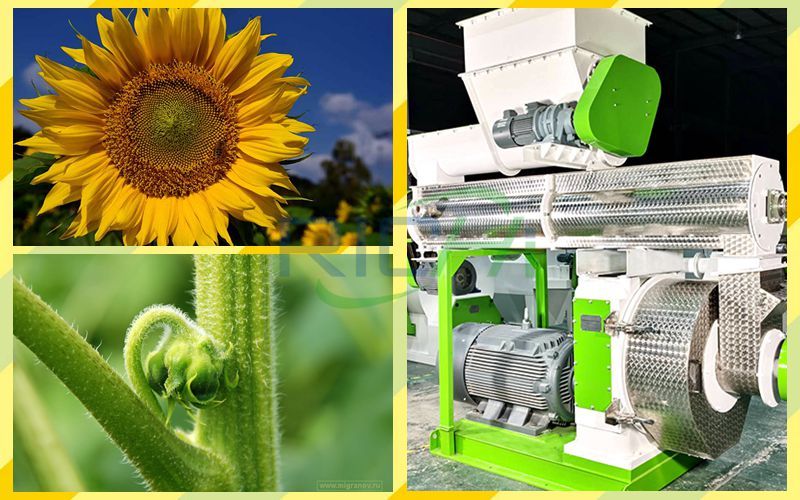

Mechanical Feed Pellet Machine
Mechanical Feed Pellet Machine

2. How to Process Sunflower Meal and Sunflower Stalk Into Feed Pellets for Cattle Sheep Pigs and Poultry

2.1 Drying and smashing

Sunflower trays are naturally dried in the sun and crushed into dry powder to be added to the ration to feed livestock. It is currently the main way to use sunflower trays in the Hetao area of ​​Inner Mongolia. In the Hetao area of ​​Inner Mongolia, there is a lot of rain during the harvest season of sunflower disks, which is prone to mildew, so the drying time should be shortened as much as possible. In the experiment, the whole threshing sunflower disc was broken into 30-50mm block sunflower discs, and 5-20mm small sunflower discs were broken into small pieces of sunflower discs. They were dried on a dry ground and turned over once every 1h. It was concluded that it would take 10h to dry to 40% dehydration. Above, it takes 4.5h for 30-50mm fragments and 1.5h for 5-20mm segments. It can be seen that it takes the longest time to dry the whole plate and is greatly affected by weather conditions. It is easy to mold and deteriorate, and the time required for drying in a small section of 5-20mm is the shortest, which can minimize the occurrence of mildew.

2.2 Making pellet feed

Crush the fresh threshing sunflower disk to 5-20mm segments, dry to 40% dehydration (this moisture has better granulation effect, and the pellets are not easy to loose), mix with dry feed, crush, pellet, and air Dry until the moisture content is below 11%. The pellet feed prepared by this method can shorten the drying time of the sunflower tray, reduce the chance of mold deterioration and improve the palatability. In the processing and granulation process, it has the effect of puffing, heating and drying. After the material is discharged, it only needs to be spread and aired, which can reduce the moisture to below 11%. The research results show that the amount of sunflower plate added during processing and granulation should not exceed 35%, otherwise it will be difficult to shape the particles due to excessive addition, and they will be fragile and difficult to spread after molding.

2.3 Making silage

Chopped fresh sunflower trays and adding 2% to 5% sucrose for single storage, or mixing fresh sunflower trays with corn stalks at a ratio of less than 40% can achieve better results. Single-storage sunflower tray has a crisp texture, light yellow color, with tartaric acid and original sunflower tray flavor. The oxidized surface becomes darker, softer, and not easy to mold; mixed silage has clear boundaries, soft texture and fresh color , With the sour taste of aromatic wine, in the production, the sunflower plate silage and hay are used to feed cows and sheep. Li Maoyi and others mixed 60% corn stalks and 40% sunflower silage, and found that the crude protein content in the silage was 11.5%, the crude fat was 8.4%, and the acid detergent fiber was 34.5%, which were higher than those of corn stalk silage alone. 8.0%, 2.1%, 2.7% of In recent years, the Hetao area of ​​Inner Mongolia has carried out experimental research, demonstration and promotion of the mixed silage technology of sunflower tray and corn stalks, studied the effect of adding different proportions of mixed silage of sunflower tray, and demonstrated it in large-scale mutton farms.

2.4 Production of composite biological protein feed

Gong Ren uses microbial multi-strain solid fermentation sunflower discs to produce biological protein feed, and inoculates Candida utilis, Aspergillus oryzae, Bacillus subtilis, and Aspergillus niger in a ratio of 1:1:2:1. 1.5% of the inoculum was added to the solid fermentation medium and fermented for 48 hours. The crude protein content in the produced biological protein feed was significantly increased, and the crude fiber and crude ash content were reduced (Table 3), which significantly improved the nutritional structure and palatability of the raw materials , The fermentation product has sweet and sour taste and wine aroma. Li Maoyi and others used a composite microbial agent composed of Candida utilis, Aspergillus oryzae and Trichoderma konsi to ferment sunflower discs to produce biological protein feed and also achieved similar results. The use of composite microbial agents to ferment sunflower discs has a simple process and large processing capacity. The products produced have high nutritional value and good palatability, can provide beneficial flora for animal intestines, improve the gastrointestinal environment, and can also solve the environmental pollution and resource waste of waste sunflower disks. It is worthy of regional research and promotion.

Table 3 Comparison of the nutrient content between the fermented products of sunflower plate and sunflower plate (%)

ingredient Crude protein Crude fat Crude fiber Crude ash
Sunflower plate 8.31 2.68 12.40 11.92
Fermented Sunflower Plate 15.17 2.57 9.16 8.64

2.5 Research on the feeding effect of different processing sunflower trays

The traditional way of feeding sunflower trays in Hetao area of ​​Inner Mongolia is to crush sunflower trays, add a little concentrate and feed them to pigs, cattle, sheep, etc., or mix sunflower trays with bran feed and feed them to pigs after heating. Li Maoyi et al. studied the effect of 60% corn stalk and 40% sunflower tray mixed silage feeding cows. The results showed that when the cows had the same feed intake, the milk yield of the cows fed with mixed silage was higher than that of cows fed with corn stalk silage alone. An increase of about 5%, and an average daily gain of 9% to 10%. He Lifen et al. fed large white pigs with diets without sunflower plate pellets and diets with 5%, 10%, and 15% sunflower plate pellets, respectively, and studied the effect on their production performance. The results showed that there was an increase in each group. There was no significant difference in weight. Healthy rex rabbits were fed with common pellet feed supplemented with coarse feed such as alfalfa and grass and pellet feed with 10% sunflower plate content. Comparison and observation showed that there was no significant difference in fur quality between the two groups. Gong Ren studied the influence of fermented protein feeds replacing part of the concentrate on milk production of dairy cows. The results showed that fermented protein feeds can effectively increase the feed intake of dairy cows, and the average daily milk production increased by 5.1%. Zhao RMB studied the fermentation combinations between corn stalks, silage corn, and silage tomato skins, and found that adding sunflower pans to different combinations of fermentation systems improved the digestibility to varying degrees.

Related Equipment

Sunflower Seed Shell Pellet Mill

Complete Sunflower Seed Shell Pellet Mill Production Line Solution
