The Function of Modulator in the Processing of Cattle and Sheep Feed Pellets

Date: 01/18/2021 08:54:39 From: Clicks:

Kindly Reminder: If you are interested in our products, Please get in contact with us

Conditioning is a process of hydrothermal treatment of powdered materials before pelleting of cattle and sheep pellets. Studies at home and abroad have shown that conditioning is one of the important factors affecting the quality of cattle and sheep feed pellets. It is in the overall quality of pellet feed. The effect is about 20%. As the market has increased the quality requirements of cattle and sheep feed pellet machine, various animal feed pellet machine manufacturers are paying more and more attention to the conditioning process in feed processing. The improvement and upgrading of conditioning equipment is their current improvement in the quality of pellet feed products. One of the important means of market competitiveness.

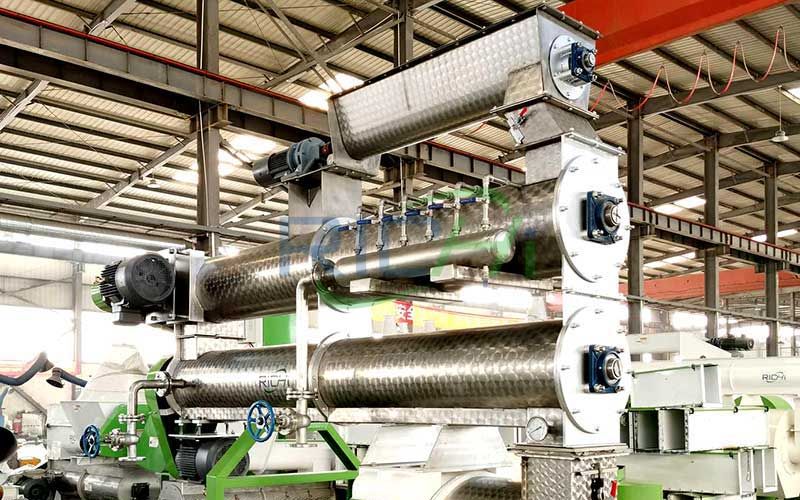

SZLH two-layer conditioner
SZLH two-layer Modulator

The Function of Modulator in the Processing of Cattle and Sheep Feed Pellets

1. The powdery materials are cured. The ability of most animals to digest starch is very low, but they can digest cooked starch to a greater extent. The conditioner greatly increases the gelatinization of the starch under the action of water and heat, and also promotes the heat denaturation of the protein in the material. The denatured protein is easy to be enzymatically hydrolyzed, thereby improving the digestibility and utilization of pellet feed. Sterilize powdered materials. Most of the pathogenic bacteria, such as E. coli and Salmonella, are not heat resistant. Using a conditioner to condition the material at a certain temperature can kill these bacteria and ensure the sanitary level of the feed. This is through the conditioner. Compared with drug disease prevention, the method of sterilizing materials has the advantages of low cost, no pollution, no drug residues and side effects.

2. The conditioning equipment can significantly improve the water resistance of pellet feed. In the pellet feed machine, the viscous components in the material gelatinize starch and denatured protein through the hydrothermal effect of steam in the pellet feed machine. , It can effectively bond other components around. Under the squeezing action of the compression mold roller, the particles and the particles are more closely combined with each other, so that the pellet feed becomes denser, the appearance is smooth, and it is not easy to be Water erosion increases the stability in the water.

3. The quenching and tempering equipment can improve the granulation of the material, increase the output, save the energy consumption of granulation, and increase the life of the die and pressure roller of the granulator. The pellet feed machine is quenched and tempered to soften the material and become more plastic. During the extrusion process with the die hole wall, the inner wall of the die and the surface of the pressure roller, the friction force is reduced, which avoids a large amount of mechanical energy transformation during the pelletizing process As heat energy, it also slows down the wear of the die and roller.

The cattle and sheep feed pellet machines and other animal feed pellet machines produced by Richi Machinery have SZLH one-layer conditioner pellet mill, SZLH two-layer conditioner pellet mill and SZLH triple-layer conditioner pellet mill according to the number of layers of the modulator.

RIICHI Modulator Introduction

1. Modulator material: stainless steel

2.Internal structure of the modulator: stainless steel shaft and paddle

3. The role of the modulator:

The modulator has a hole for connecting with the steam boiler. The dry saturated steam and the material are fully contacted and mixed in the modulator to achieve the effect of ripening the material.

4. Modulator size:

SZLH 250: Length 1800mm* Diameter 273mm

SZLH 320: Length 2000mm* Diameter 320mm

SZLH 350: Length 2440mm* Diameter 350mm

SZLH 420: Length 3000mm* Diameter 420mm

SZLH 508: Length 3000mm* Diameter 420mm

The feeder and modulator produced by RICHI Machinery are all made of stainless steel. They are corrosion resistant, acid and alkali resistant, durable and have a longer life.

Cattle and Sheep Feed Pellet Machine Parameters

Model Capacity(TPH) Main Motor Power(kw) Feeder Motor Power(kw) Conditioner Power(kw) Dia.of Ring Die(mm) Final Pellet(mm)
SZLH250 1-2 22 0.75 1.5 250 2~12
SZLH320 3-4 37 1.5 2.2 320 2~12
SZLH350 5-7 55 1.5 3 350 2~12
SZLH420 8-12 110 1.5 7.5 420 2~12
SZLH508 10-18 160 2.2 11 508 2~12
SZLH558 15-25 180/200 2.2 11 558 2~12
SZLH558D 14-22 160/180/200 1.5 7.5 558 2~18
SZLH678 20-30 220/250 2.2 11 678 2~12
SZLH678D 15-25 200/220/250 2.2 11 673 2~18
SZLH768 25-40 280/315 2.2 11 768 2~12
SLZH858 25-42 280/315 2.2 15 858 2~18
