Investment Cost and Equipment List of Pig Feed and Fish Feed Pellet Production Line Project

Date: 11/23/2020 08:49:10 From: feed-pellet-plant.com Clicks:

Kindly Reminder: If you are interested in our products, Please get in contact with us

With the development of animal husbandry and the export of livestock, poultry and aquatic products, it will greatly promote the faster development of the feed industry. At present, the export of livestock products must be based on the production of green livestock and poultry, and the production of green livestock and poultry must have green livestock and poultry compound feed. Therefore, the construction and production of pure natural, non-polluting, non-toxic, and non-side-effect green livestock and poultry feed is an urgent task for my country's feed manufacturers.

This article introduces the project with an annual output of 40,000 tons of pig feed and 10,000 tons of fish feed. It mainly introduces the investment cost, equipment list, area, project content, consumption of raw and auxiliary materials, etc. of the joint production line of pig feed and fish feed pellets. If calculated by the output of feed pellets per hour, it is a large-scale project of a combined pellet production line of 20 tons/hour pig feed and 5 tons/hour fish feed. This project requires not only a feed pellet machine, but also an extruder, pulverizer, mixer, packaging machine, and steam boiler.

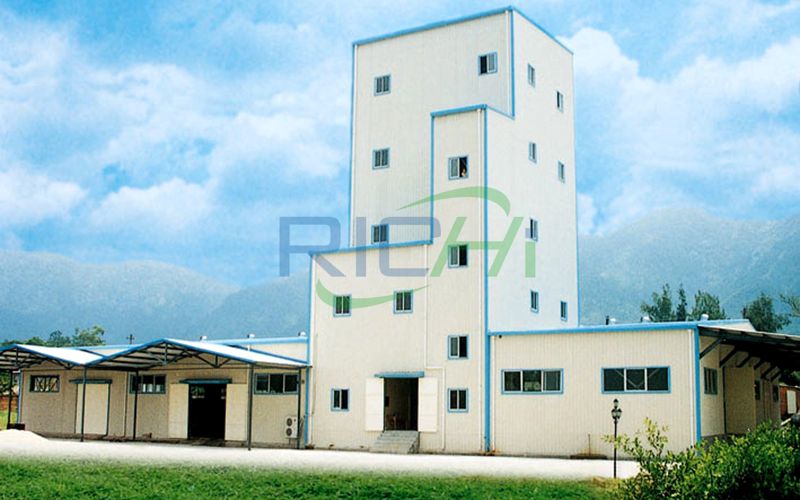

Investment Cost and Equipment List of Pig Feed and Fish Feed Pellet Production Line Project
Investment Cost and Equipment List of Pig Feed and Fish Feed Pellet Production Line Project

1. Project Name, Location and Nature of Construction

2. Project Area

The project covers a total area of ​​3,000 square meters, with a total construction area of ​​3270 square meters, including a warehouse construction area of ​​2,000 square meters and a production workshop construction area of ​​1,000 square meters. The land for this project is construction land with a good ecological environment, with ponds on the west, Linnong irrigation canal on the north and east, and X056 county road. X056 county road can directly reach the center of Miluo, and farmland on the south.

3. Project Composition

The project will build a production line with an annual output of 40,000 tons of pig feed and 10,000 tons of fish feed. The engineering construction content of the project mainly includes main engineering, auxiliary engineering, environmental protection engineering, and public engineering. See Table 1 for details.

Engineering category project name Engineering Content Remarks
structural work Production workshop Building area is 1000㎡, 4F, steel frame structure Covers an area of ​​about 250 square meters
Auxiliary engineering warehouse Raw material warehouse with a building area of ​​1000 square meters 1F, steel frame structure
Finished product warehouse with a building area of ​​1000 square meters 1F, steel frame structure
Boiler Room One with a construction area of ​​about 200 square meters 1F, brick-concrete structure
Power distribution room One with a construction area of ​​about 20 square meters 1F, brick-concrete structure
canteen One with a construction area of ​​about 30 square meters 1F, brick-concrete structure
Guard room One with a construction area of ​​about 20 square meters 1F, brick-concrete structure
Public works power supply system Township substation power supply
water supply system groundwater
Heating Electric heating lamp Use electric heaters for heating
Environmental Engineering Waste gas treatment facilities Water film dust collector Dust removal of combustion exhaust gas of steam boiler
Pulse dust collector Remove the dust generated by the process
Noise control facilities Sound insulation, shock absorption, green belts in the factory area, etc.
Wastewater
treatment
facility
domestic sewage Set up a septic tank Treat domestic sewage as surrounding agricultural fertilizer
Initial rain Initial rainwater collection tank
Sediment circulation pool Precipitation of boiler dust removal wastewater After precipitation, it is recycled and not discharged
Solid waste treatment facility Domestic garbage Domestic waste generated by employees Hand over the garbage to the local sanitation department for disposal
Waste packaging materials Garbage collection point Recycled by raw material providers

Note: The production process of this project runs through each production workshop.

List of specific technical and economic indicators of this project 2.

Table 2 List of technical and economic indicators of the proposed project

Serial number project unit Quantity Remarks
1 Total area m 2 3000
2 Total surface area m 2 3270
Production workshop m 2 1000 Covers an area of ​​about 250 square meters
warehouse Raw materials warehouse m 2 1000
product warehouse m 2 1000
Steam boiler room m 2 200
Power distribution room m 2 20
canteen m 2 30
Guard room m 2 20
3 Initial rainwater collection tank m 3 50
4 Settling circulation tank m 3 /d 10
5 Green area m 2 200
6 Labor quota people 15
7 Total investment Ten thousand RMB 500

4. Main Production Equipment

According to the project construction scale, product plan and technical plan requirements, comprehensive consideration of equipment service life, material consumption indicators, etc., the main production equipment of this project is determined as shown in Table 3.

Table 3 List of main production equipment

Serial number name unit Quantity model Remarks
1 Bucket elevator station 10 TDTG40/19
2 Cylindrical cleaning screen station 1 TDSCY80
3 Permanent magnet cylinder station 1 TDYCT30
4 grinder station 1 TDWFS70×80
5 Double shaft paddle mixer station 1 TDWLSS200
6 Granulator station 1 TDZL420
7 Rotating sieve set 1 TDHFS125×3
8 Packing Machine station 1 TDFB35
9 Centralized pulse dust removal system set 2 TDMCa36
10 Independent pulse dust collector set 6 TDMCa50
11 Silo A Several 60~300m³
12 steamer station 1 SZL4-1.25-AII Rated steam output: 4t/h
13 Air compressor station 1 LGU37A

5. Consumption of Raw and Auxiliary Materials

Table 4 Main raw and auxiliary materials and consumption

Serial number Name of raw and auxiliary materials unit Quantity source form Packing Maximum storage capacity Remarks
1 corn t/a 27500 Market purchase Particles In bulk 1500t  Bag storage
2 Bran t/a 3400 Market purchase Particles Bagged 250t  Bag storage
3 Rapeseed meal t/a 2500 Vegetable oil plant procurement Particles Bagged 500t Bag storage
4 Soybean meal t/a 9437.5 Vegetable oil plant procurement Particles Bagged 500t Bag storage
5 Cotton meal t/a 1875 Vegetable oil plant procurement Particles Bagged 500t Bag storage
6 Fish meal t/a 312.5 Market purchase Powdery Bagged 50t Bag storage
7 grease t/a 4500 Market purchase Liquid Barreled 500t Bag storage
8 Vitamin additives t/a 12.5 Market purchase Powdery Bagged 5t Bag storage
9 Amino acid additives t/a 62.5 Market purchase Powdery Bagged 10t Bag storage
10 Propionic acid type antifungal agent t/a 25 Market purchase Liquid Barreled 7t Bag storage
11 Enzyme t/a 9.375 Market purchase Powdery Bagged 3t Bag storage
12 Probiotics t/a 9.375 Market purchase Powdery Bagged 3t Bag storage
13 Allicin premix t/a 6.25 Market purchase Liquid Barreled 2t Bag storage
14 Vitamin premix t/a 62.5 Market purchase Powdery Bagged 10t  Bag storage
15 Mineral additives t/a 62.5 Market purchase Powdery Bagged 10t Bag storage
16 Molded biomass t/a 225 Market purchase Powdery Bagged 20t Bag storage
17 Electricity Million degrees/a 15 Local grid \ \ \ \
18 water t/a 5772 groundwater \ \ \ \

6. Product Solution

The main products produced in this project are pig feed and fish feed. The specific product plan is shown in Table 5 below.

Finished product name unit Yield
Food for pig 10,000 tons/year 4
fish food 10,000 tons/year 1

Note: Since the production formula of this project changes according to the requirements of the demand unit, the different fishes to be raised, and the feeding purpose, the technical indicators of the conventional products are shown in Table 1-6.

Table 6 Main technical indicators of products

Product
name
Technical index
Crude protein (%) Crude ash (%) Calcium
(%)
Phosphorus (%) Arsenic
 mg/kg
Lead
mg/kg
Fluorine
mg/kg
Remarks
fish food 32.1 9.8 0.8 0.91 1.1 1.4 14.3 Olaquindox cannot be detected
≧ 32.0 ≦ 12.0 ≦ 0.60 ≧ 0.90 ≦ 3.0 ≦ 7.5 ≦ 350.0 Not detected
in compliance
Food for pig 17.0 12.2 3.61 1.00 1.2 2.0 10.6 Furazolidone shall not be detected
≧ 17.0 ≦ 16.0 ≧2.50
-5.00
≧0.50 ≦2.0 ≦5.0 ≦200.0 Not detected
in compliance
21.2 5.2 1.21 0.69 11.2 0.7 21.0 Furazolidone shall not be detected
≧21.0 ≦8.0 0.80
-1.30
≧0.60 ≦16.2 ≦5.0 ≦250.0 Not detected
in compliance

7. Process Flow

The process flow is briefly described as follows:

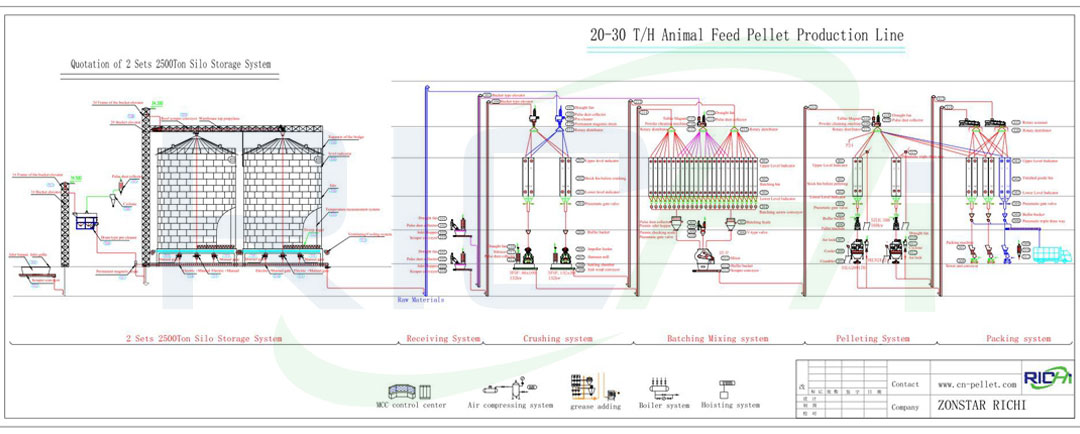

20-30T/H feed pellet production line flow chart
20-30T/H feed pellet production line flow chart

(1) Raw material receiving and cleaning

After the main raw materials needed for production are brought into the factory by the car, the raw materials that need to be crushed are removed by the primary cleaning screen to remove impurities and magnetic separators to remove iron impurities. The main pollutants are removed impurities and equipment noise.

(2) Crushing section

The project's raw and auxiliary materials, corn, wheat bran, cotton meal, etc., will be crushed by a crusher after cleaning and removing impurities. The main pollutants in the crushing process are dust and equipment noise. The crushing is carried out in a closed crusher, and the dust is discharged after being processed by a pulse dust collector; the crushing equipment is equipped with a shock-absorbing foundation and a muffler.

(3) Ingredients and mixing section

According to the requirements of the formula, various raw materials participating in the ingredients are measured and weighed into the mixer in turn. The mixing process is carried out in a closed mixer, and the main pollutant is the noise of the mixing equipment.

(4) Superfine grinding section

Because the finer the particles, the larger the surface area, and the larger the contact area of ​​the digestive juice of fish and pigs, which improves the digestibility of feed and increases its nutritional reward.

(5) Secondary mixing section

The superfinely pulverized raw materials are mixed again. The mixing process is carried out in a closed mixer, and the main pollutant is the noise of the mixing equipment.

(6) Puffing and drying section

The raw and auxiliary materials after the secondary mixing are expanded and dried, and are put into the dryer for drying treatment. After drying, the moisture content of the material is about 2%.

(7) Spraying and cooling section

The spraying process of this project is a quenching and tempering process. The materials to be mixed are tempered into powdered feed with certain moisture and humidity, which is beneficial to pelletizing. After the process is completed, the materials are sent to the cooler for cooling treatment.

(8) Granulation section

The mixed raw materials enter the feed granulator, the temperature of the material is adjusted to 80-85℃ through steam, and the water content of the material is about 10%, and then the granulator is made into granules of specifications and particle size. The granulation process is mainly caused by noise pollution of granulation equipment.

(9) Double material packing section

Packed into warehouse, stored for sale.

(10) Steam boiler

The production steam is provided by a 4t/h biomass steam boiler. The biomass boiler will produce a certain amount of waste gas and biomass ash.

8. Construction Period

This project is a new project. According to the site survey, the land leveling work has been completed. This project also requires the installation of equipment for the main body, auxiliary engineering, public engineering, environmental protection engineering and other projects. The main project content is shown in Table 7 below.

Engineering category project name Engineering Content Remarks
structural work Production workshop Building area is 1000㎡, 4F, steel frame structure The entire production process runs through the layers
Auxiliary engineering warehouse Raw material warehouse with a building area of ​​1000 square meters 1F, steel frame structure
Finished product warehouse with a building area of ​​1000 square meters 1F, steel frame structure
Boiler Room One with a construction area of ​​about 200 square meters 1F, brick-concrete structure
Power distribution room One with a construction area of ​​about 20 square meters 1F, brick-concrete structure
canteen One with a construction area of ​​about 30 square meters 1F, brick-concrete structure
Guard room One with a construction area of ​​about 20 square meters 1F, brick-concrete structure
Public works power supply system Township substation power supply
water supply system groundwater
Heating Electric heating lamp Use electric heaters for heating
Environmental Engineering Waste gas treatment facilities Water film dust collector Dust removal of exhaust gas from steam boiler
Pulse dust collector Remove the dust generated by the process
Noise control facilities Sound insulation, shock absorption, green belts in the factory area, etc.
Wastewater
treatment
facility
domestic sewage Set up a septic tank to treat domestic sewage and use it as surrounding agricultural fertilizer
Initial rain Initial rainwater collection tank
Sediment circulation pool After the boiler dedusting wastewater is settled, it is recycled and not discharged
Solid waste treatment facility Domestic garbage Domestic waste generated by employees Hand over the garbage to the local sanitation department for disposal
Waste packaging materials Garbage collection point Recycled by raw material providers

Table 7 Project content during construction period

9. Labor Quota and Work System

The project has a labor force of 15 people, an average annual production time of 240 days, 8 hours of work per day, a 1-shift system, and no accommodation.
