Large-scale Fish Feed Pellet Production Line and Extruded Line With an Annual Output of 200,000 Tons

Date: 11/16/2020 08:44:57 From: feed-pellet-plant.com Clicks:

Kindly Reminder: If you are interested in our products, Please get in contact with us

As a traditional industry, aquaculture has developed rapidly in modern times and has shown its important status in society, economy and people's lives. In particular, the aquaculture industry has seen the fastest growth in global animal and plant food production in the past 30 years. The project will build 4 expansion lines and 3 fish feed pellet production lines. The annual production capacity of 70,000 tons of expanded fish feed, 110,000 tons of fish feed pellets, and 20,000 tons of special small feeds will be formed, and a total of 200,000 tons of aquatic feed production projects.

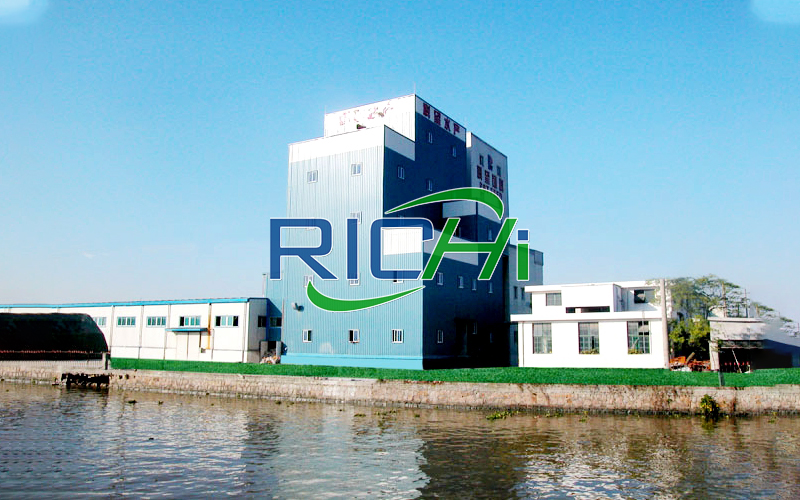

Large-scale Fish Feed Pellet Production Line and Extruded Line With an Annual Output of 200,000 Tons
Large-scale Fish Feed Pellet Production Line and Extruded Line With an Annual Output of 200,000 Tons

As a large-scale aquatic feed pellet production line, I believe many users are very interested in this fish feed pellet production line equipment. The following table details the type and quantity of equipment used.

Table 1 List of main production equipment of the first phase of the project

Serial number Device name/System name Specification model amount) Remarks
1 Granular material feeding fence and feeding port Fence size: 3.4m*2.3m; feeding hopper 4 cubic meters 3 Raw material acceptance and cleaning process
2 Feeding fence and feeding port Fence size: 1.5 meters X 1.2 meters; 2 cubic meters of feeding hopper 1
3 Cassava crusher (spare) XKPS38X61CS 1
4 Pulse dust collector AHMB64L 3
5 Fan 4-72-4A 3
6 silencer φ500 3
7 Scraper conveyor LLCA50 3
8 Self-cleaning bucket elevator TDTG500×280 4
9 Cone powder sieve SQLZ90 3
10 Magnetic separation drum machine SCXG30×60 6
11 Pulse dust collector AHRM6L 6
12 Fan MKV-012R 6
13 Collection bucket About 0.5m3 6
14 Rotary distributor TFPX12×300 2
15 Cylindrical cleaning screen SCY100 3
16 Rotary distributor TFPX4×300 1
17 Rotary distributor TFPX10×300 1
18 Rotary distributor TFPX6×300 1
19 Rotary distributor TFPX8×300 1
20 To be crushed 20m³/piece 4 One crushing process
twenty one Feeder   4
twenty two Unloading level device   5
twenty three air hammer AH-40 4
twenty four Crushing feeding buffer hopper About 0.5m 3 1
25 Feeder (frequency conversion) TWLY20×125 1
26 grinder SWFP66×125 1
27 Pulse dust collector LNGM72 1
28 Wind net φ550mm 1
29 Fan   1
30 silencer φ550 1
31 Wind network management φ550 1
32 Smash settling bucket 3m 3 1
33 Material seal auger TLSGF32 1
34 Self-cleaning bucket elevator TDTG500×280 1
35 Pulse dust collector AHRM6L 1
36 Fan MKV-012R 1
37 Collection bucket About 0.5m 3 1
38 Distributor TFPX8×300 1
39 Permanent magnet cylinder TCXT30 1
40 Ingredients warehouse 780 cubic meters in total 30 One batching process
41 Ingredients warehouse 10m³/piece 2
42 Feeder   32
43 Unloading level device   32
44 air hammer AH-40 37
45 Screw feeder AHSG315 twenty two
46 Screw feeder AHSG250 12
47 Screw feeder AHSG200 4
48 Screw feeder AHSG400 4
49 Screw feeder AHAS250*2 2
50 Breathable cap   1
51 Batching scale bucket PCS-15 3
52 Feeding port AHFZ75b 3
53 Batching scale bucket PCS-20 6
54 Pulse dust collector AHMB6L 2
55 Fan MKV-012R 2
56 Pulse dust collector AHMY18 2
57 Wind shut GFDZY-10 2
58 Fan 4-72-3.6A 2
59 Stainless steel small silo   27 Small material adding system
60 Feeder   28
61 Feeding bin cover   27
62 Single cylinder dust collector AHMY1 27
63 throttle 160 27
64 Fan 4-72-3.2A 2
65 Micro screw AHSG125 17
66 Micro screw AHSG100 10
67 Stainless steel flip scale bucket 250KG/P 4
68 sensor   16
69 Turnover mechanism   4
70 Self-cleaning scraper conveyor AHKA50 1
71 Premix mixer AHML500 2
72 Mixed buffer bucket   2
73 Scraper conveyor AHKA50 1
74 Double shaft paddle type high efficiency mixer AHHJ4b 1 One mixing process
75 Mixed buffer bucket >5m3 1
76 air hammer AH-40 2
77 Unloading level device   1
78 Self-cleaning scraper conveyor AHKG100 1
79 Unpowered pulse dust collector AHMR4 1
80 Self-cleaning bucket elevator TDTG500×280 1
81 Double shaft paddle type high efficiency mixer AHHJ6b 1
82 Mixed buffer bucket >7m3 1
83 air hammer AH-40 2
84 Unloading level device   1
85 Self-cleaning scraper conveyor AHKG100 1
86 Unpowered pulse dust collector AHMR4 1
87 Self-cleaning bucket elevator TDTG500×280 1
88 To be crushed 20m 3 /pc 8 Granular material secondary crushing section
89 Feeder   8
90 Unloading level device   12
91 air hammer AH-40 8
92 Crushing bucket About 0.5m3 4
93 Crushing feeding buffer hopper About 0.5m3 4
94 Feeder (frequency conversion) TWLY20×125 4
95 grinder SWFP66×125 1
96 Pulse dust collector LNGM72 1
97 Adjust the damper φ550mm 4
98 Wind net φ550mmX35000 4
99 Fan   4
100 silencer φ550 1
101 Wind net φ550 1
102 Smash settling bucket 3m 3 4
103 Material seal auger TLSGF32 4
104 Self-cleaning bucket elevator TDTG400×230 4
105 Permanent magnet cylinder TCXT30 1
106 Pulse dust collector AHMB6L 1
107 Fan MKV-012R 1
108 Collection bucket About 0.5m3 1
109 Distributor TFPX6×300 1
110 grinder SWFP66×100 3
111 Pulse dust collector LNGM63 3
112 silencer φ500 3
113 Wind net φ500 3
114 Ingredients warehouse 20m³/piece 3 Granular material secondary batching section
115 Feeder   3
116 Unloading level device   3
117 air hammer AH-40 4
118 Warehouse machine AHSG315 3
119 Breathable cap   1
120 Batching scale bucket PCS-30 1
121 Pulse dust collector AHMB6L 1
122 Fan MKV-012R 1
123 Feeding port AHFZ75b 1
124 Liquid adding pipeline system With SYTV63 3
125 Intermediate tank SYTV63 3
126 Liquid scale SYTC100-F 2
127 Double shaft paddle type high efficiency mixer AHHJ6b 1 Granular material secondary mixing section
128 Mixed buffer bucket >8m3 1
129 air hammer AH-40 2
130 Unloading level device   1
131 Self-cleaning scraper conveyor AHKG100 1
132 Unpowered pulse dust collector AHMR4 1
133 Self-cleaning bucket elevator TDTG500×280 1
134 Permanent magnet cylinder TCXT40 1
135 Pulse dust collector AHMB6L 1
136 Fan MKV-012R 1
137 Collection bucket About 0.5m3 1
138 Rotary distributor TFPX4×300 1
139 To be granulated bin 20m3/piece 3 Pellet granulating section
140 Feeder   3
141 Unloading level device   6
142 Granulation buffer bucket About 1m3 3
143 air hammer AH-40 3
144 Granulator feeder (frequency conversion) SWLL20A 3
145 Conditioner STZJg420a 6
146 Quality Keeper STZB1500 6
147 Feed Pellet machine SZLH520 3
148 Cooling shutter GFDWZY-24-C 3
149 Counter flow cooler AHLN24×24 3
150 Cooling wind net φ700 3
151 Chakron AHXF1600 3
152 Wind net φ800 3
153 Fan (frequency conversion) 4-72-8C 3
154 Anechoic settlement chamber   3
155 Wind shut GFDWZY-16-C 3
156 Self-cleaning bucket elevator TDTG400×230 3
157 Rotary classification screen AHJH140×2C 3
158 Finished product warehouse 20m³/piece 6 Granule packaging section
159 Feeder   6
160 Unloading level device   9
161 Impeller feeder TWLYZ20×50A 3
162 Vibrating grading screen TQLZ150×200 3
163 Powder analyzer TXFQ15×30 3
164 Packing bucket 2m 3 3
165 Automatic packaging scale   3
166 Seam Conveyor Combination Machine   3
167 Pulse dust collector AHMY39 3
168 Wind shut GFDZY-10 3
169 Fan (frequency conversion) 6-30-N0.6C 3
170 silencer φ400 3
171 Permanent magnet cylinder TCXT25 1
172 To be broken warehouse 5m³/piece 1 Granular material crushing and packaging section
173 Feeder   3
174 Unloading level device   4
175 Collection bucket   3
176 Crusher DFZL1500 1
177 Self-cleaning bucket elevator TDTG400×230 1
178 Two-position shunt TFLX22×2 1
179 High square screen FSFG83 4
180 Finished product warehouse 15m³/piece 2
181 Packing bucket 2m 3 1
182 Single scale DCS-50(C/L6) 1
183 Seam Conveyor Combination Machine   1
184 Pulse dust collector AHMY26 1
185 Wind shut GFDZY-10 1
186 Fan 6-36-4A 1
187 To be crushed 15m³/piece 4 Puffed fish meal two powder and superfine powder section
188 Feeder   4
189 Unloading level device   5
190 air hammer AH-40 8
191 Crushing feeding buffer hopper About 0.5m 3 2
192 Feeder (frequency conversion) TWLY20×100 1
193 grinder SWFP66×100 2
194 Pulse dust collector LNGM63 2
195 Wind net φ450mmX35000 1
196 Fan   6
197 silencer φ450 1
198 Wind net φ450 1
199 Smash settling bucket 3m 3 2
200 Material seal auger TLSGF32 2
201 Self-cleaning bucket elevator TDTG400×230 2
202 Permanent magnet cylinder TCXT25 2
203 Superfine to be crushed warehouse 20m 3 /pc 4
204 Superfine grinder   4
205 Chakron   4
206 Wind shut   8
207 Pulse dust collector   4
208 Suction wind net   2
209 silencer φ700 5
210 Drawer type powder sieve AHCTS125*190 4
211 Screw conveyor AHSG250 4
212 Leveler   8
213 Feeder TWLY20×100 1
214 Wind net φ480mmX35000 1
215 Wind net   1
216 Distributor   2
217 High square screen   2
218 Conveyor auger TLSUS25 4
219 Ingredients warehouse 20m³/piece 2 Puffed fish feed secondary batching section
220 Feeder   2
221 Unloading level device   6
222 air hammer AH-40 6
223 Screw feeder AHSG315 2
224 Breathable cap   1
225 Batching scale bucket PCS-20 1
226 Pulse dust collector AHMB6L 1
227 Fan MKV-012R 1
228 Feeding port AHFZ75b 1
229 Double shaft paddle type high efficiency mixer AHHJ4b 2 Puffed fish feed secondary mixing section
230 Mixed buffer bucket >5m3 2
231 Self-cleaning scraper conveyor AHKG100 2
232 Unpowered pulse dust collector AHMR4 2
233 Liquid adding pipeline system With SYTV63 5
234 Liquid scale SYTC100-F 2
235 Grease adding line DN32 1
236 Self-cleaning bucket elevator TDTG500×280 2
237 Permanent magnet cylinder TCXT30 7
238 Buffer 5m³/piece 4
239 Feeder   2
240 Screw feeder AHSG250 3
241 Drawer type powder sieve AHCTS125*190 3
242 Leveler   2
243 air hammer AH-40 4
244 Direct-fired dryer SmartFeedⅡ-P6GX 3 Fish puffing chemical section
245 Puffing warehouse 20m³/piece 5
246 Feeder   5
247 Unloading level device   7
248 Double twisted dragon AHAS200*2 3
249 Weight-reducing disc feeder SWLP150 3
250 Feeder (frequency conversion) AHWA200 5
251 Double shaft differential conditioner STZY1500 1
252 Single screw extruder AHSK215 2
253 Host inverter 315kw 2
254 Chakron AHXF800 3
255 Fan 4-72-3.6A 4
256 Chakron AHXF1300 2
257 High pressure fan 9-26-6A 2
258 (Dehumidification) Chakron AHFX2000 2
259 Centrifugal fan 4-72-8C 4
260 Replica cooler AHLB28×28 1
261 Chakron AHXF1800 2
262 Self-cleaning bucket elevator TDTG500×280 4
263 Rotary classification screen AHJH140×2C 2
264 Spraying buffer bucket 5m 3 4
265 Dehumidifying wind net φ900mm 1
266 air hammer AH-40 4
267 Batching scale bucket PCS-10 1
268 Atmospheric batch spraying machine AHSC2000 1
269 Batch spraying control cabinet   1
270 Batch spraying control system   1
271 Liquid adding machine SYTV63 4
272 Pumping system With SYTV63 4
273 Liquid adding system SYTC100-F 2
274 Grease adding line DN32 2
275 Buffer bucket 4m3 4
276 Extruder AHCE155 1
277 Twin screw extruder AHCE155 1
278 Host inverter 355kw 1
279 Positive pressure density controller   1
280 Density control system   1
281 (Dehumidification) Chakron AHFX2200 1
282 Centrifugal fan G4-73-No10.5C 1
283 High pressure fan 6-30-8C-37KW 1
284 Vacuum spraying machine AHVC2000 1
285 Vacuum spraying control cabinet   1
286 Vacuum spraying control system   1
287 Leveler   10
288 Warehouse machine TLSUW32×32 2
289 Broken arch feeding bin TXLP120 2
290 Extruder AHSK215 1
291 Dehumidifying Chakron X55-φ900 3
292 Fengyun Shakelong X55-φ1300 1
293 Natural gas dryer SmartFeedⅡ-P7GX 2
294 Chakron SKL-Special 2300 2
295 Fan (frequency conversion) JYFJ51-HG-105C-55kw 1
296 Chakron X55-φ2000 1
297 Fan GM45C_30KW 1
298 Grading screen SFJH140X2C 2
299 Vacuum vertical spraying machine PTZL3000 2
300 Vacuum vertical spraying control cabinet   2
301 Vacuum vertical spraying control system JB-PTCL 2
302 Stainless steel intermediate storage tank MSYG1 4
303 Pumping system MSBS80 4
304 Density controller SMTZ150 2
305 Fan 4-3.6-3kw 1
306 Fan JYFJ51-HG-105C-75kw 2
307 Feeding air shutter SGFY68 1
308 Chakron X55-φ2000 1
309 Control System   1
310 Puffed product warehouse 20m³/piece 12 Packing section of puffed fish feed
311 Feeder   6
312 Unloading level device   14
313 Buffer bucket About 0.5m 3 6
314 Rotary classification screen AHJH140×2C 3
315 Granule double scale DCS-50CS-Q6 2
316 Seam Conveyor Combination Machine   7
317 Pulse dust collector AHMY26 2
318 Wind shut GFDZY-10 1
319 Packing bucket 2m 3 6
320 Buffer bucket A total of 10m 3 5
321 Scraper conveyor LLCA50 2
322 Self-cleaning bucket elevator TDTG400×230 1
323 Leveler   15
324 Grading screen AHJH140×2C 3
325 Automatic packaging scale DCS-50CS-Q6 3
326 Fan 4-72-4A 1
327 Air compressor   3 Auxiliary section
328 gas tank   6
329 Natural gas boiler CZI-2000GSC (2t / h) 4
330 Soft water preparation device MS-250C 1

Table 2 Annual consumption of raw and auxiliary materials

product Name of raw and auxiliary materials Annual consumption (t/a) source Storage method Maximum storage capacity
Puffed fish feed Wheat secondary 10800 Outsourcing Bagged (50kg/bag), raw material warehouse storage 200
Coarse bran 4500 Bagged (50kg/bag), raw material warehouse storage 0
Rice bran 9000 Bagged (50kg/bag), raw material warehouse storage 50
Soybean oil level 1 4500 Bagged (50kg/bag), raw material warehouse storage 20
46% soybean meal 25200 Bagged (50kg/bag), raw material warehouse storage 1000
Type 200 rapeseed meal 14,400 Bagged (50kg/bag), raw material warehouse storage 600
50% cotton meal 2700 Bagged (50kg/bag), raw material warehouse storage 100
corn protein flour 4500 Bagged (50kg/bag), raw material warehouse storage 100
Dried white lees 4500 Bagged (50kg/bag), raw material warehouse storage 100
Calcium dihydrogen phosphate 2700 Bagged (50kg/bag), raw material warehouse storage 100
Bentonite Grade II 2700 Bagged (50kg/bag), raw material warehouse storage 100
98.5% lysine 36 Bagged (50kg/bag), raw material warehouse storage 10
Choline Chloride 36 Bagged (50kg/bag), raw material warehouse storage 5
Sodium chloride (96.5%) 18 Bagged (50kg/bag), raw material warehouse storage 15
Vitamin premix for omnivorous fish F22V (powder/40kg) 360 Bagged (50kg/bag), raw material warehouse storage 15
Microelement premix for omnivorous fish F29M (powder/50kg) 360 Bagged (50kg/bag), raw material warehouse storage 70
Imported fish meal 900 Bagged (50kg/bag), raw material warehouse storage 20
Domestic ddgs 1800 Bagged (50kg/bag), raw material warehouse storage 200
Imported chicken powder 1800 Bagged (50kg/bag), raw material warehouse storage 60
Pelleted fish feed Wheat secondary 5500 Bagged (50kg/bag), raw material warehouse storage 200
barley 5500 Bagged (50kg/bag), raw material warehouse storage 100
Coarse bran 5500 Bagged (50kg/bag), raw material warehouse storage 200
Rice bran 13,200 Bagged (50kg/bag), raw material warehouse storage 50
Peanut meal 5500 Bagged (50kg/bag), raw material warehouse storage 50
Soybean oil level 1 3300 Bagged (50kg/bag), raw material warehouse storage 20
46% soybean meal 27500 Bagged (50kg/bag), raw material warehouse storage 1000
Type 200 rapeseed meal 15400 Bagged (50kg/bag), raw material warehouse storage 600
50% cotton meal 5500 Bagged (50kg/bag), raw material warehouse storage 100
corn protein flour 3300 Bagged (50kg/bag), raw material warehouse storage 100
Dried white lees 2200 Bagged (50kg/bag), raw material warehouse storage 100
Calcium dihydrogen phosphate 44 Bagged (50kg/bag), raw material warehouse storage 100
Bentonite Grade II 44 Bagged (50kg/bag), raw material warehouse storage 100
98.5% lysine twenty two Bagged (50kg/bag), raw material warehouse storage 10
Choline Chloride 660 Bagged (50kg/bag), raw material warehouse storage 5
Propionic acid type solid antifungal agent 330 Bagged (50kg/bag), raw material warehouse storage 3
Sodium chloride (96.5%) 1100 Bagged (50kg/bag), raw material warehouse storage 15
Vitamin premix for omnivorous fish F22V (powder/40kg) 2200 Bagged (50kg/bag), raw material warehouse storage 5
Microelement premix for omnivorous fish F29M (powder/50kg) 2200 Bagged (50kg/bag), raw material warehouse storage 60
Imported fish meal 1100 Bagged (50kg/bag), raw material warehouse storage 20
Domestic ddgs 5500 Bagged (50kg/bag), raw material warehouse storage 200
Soybean phospholipid oil level 1 5500 Bagged (50kg/bag), raw material warehouse storage 10
Imported chicken powder 2200 Bagged (50kg/bag), raw material warehouse storage 60

Table 3 List of product solutions

product name Specification (mm) Output (t/a) Packing standard (kg/bag)
Extruded material for fish 2.0 120 20
Powder 120
1.0 1300
2.0 1000
3.0 2000
Extruded material for fish 5.0 2000 25
3.0 10000
2.0 1800
3.0 15000
5.0 5000
2.0 6000
3.0 20000
5.0 4000
2.0 360
3.0 1300
Total extruded material 70000 /
Conventional feed for fish Medium damage 950 40
Medium damage 3500
Powder 550
3.0 12000
4.0 5800
2.0 3500
2.0 12500
3.0 52000
4.0 9800
2.0 1400
3.0 5500
4.0 200
2.0 1400
3.0 900
Total of conventional pellets 110000 /
Special materials 1.5 200 20
1.5 100
2.0 250
1.5 150
2.0 2400
2.0 400
3.0 400
2.0 400
3.0 3500
Powder 150
1.0 550
1.5 150
1.5 250
2.0 1900
3.0 700
Powder 200
1.0 1700
1.5 600
3.0 150
5.0 350
Special materials 1.0 1000 25
2.0 1500
3.0 3000
Specialty materials subtotal 20000 /
total 200000 /

If you are interested in fish feed pellet production line or aquatic feed pellet production line project, please consult us. Richi can design and quote for you free of charge according to your actual needs. We currently export to 113 countries and regions, and our equipment and services have been recognized and praised by many customers.

Part of the Animal Feed Pellet Production Line Project Display

Uzbekistan 1-1.5T/H Fish Feed Line

Uzbekistan 5T/H Sinking Fish Feed Pellet Line

Nigeria 100-150KG/H Floating Fish Feed Pellet Line

Cote D’Ivorie 300-400kg/H Floating Fish Feed Line

5-6T/H Cattle Feed+10T/H Chicken Feed Pellet Production Line Export To Saudi Arabia

10-12T/H Forage Grass Pellet Production Line Export To USA

Tanzania 4-5T/H Animal Mash Automatic Feed Line And 3-4T/H Pellet Feed Line

Uzbekistan 10-15T/H Poultry Feed Pellet Plant

Uzbekistan 10T/H Poultry Feed Pellet Line+5T/H Permix Feed Line

Afghanistan 10-15T/H Chicken Feed Pellet Line

The above is the article for you: Large-scale Fish Feed Pellet Production Line and Extruded Line With an Annual Output of 200,000 Tons. If you are interested in our products or project solutions, please contact us. We will give you the best product quality and the best price. Email: enquiry@pellet-richi.com

SEND INQUIRY

Here you can submit any questions and we will get back to you as soon as possible. We will not disclose the information you submit to anyone, please rest assured.

Your Name(*)
Your E-mail*
Your Telephone
Product Name
If you need specific information about anything about our product, please write here!

Copyright© 2022 Richi Machinery. All rights reserved.     Site Map

0086-13838389622
