1. Construction Content

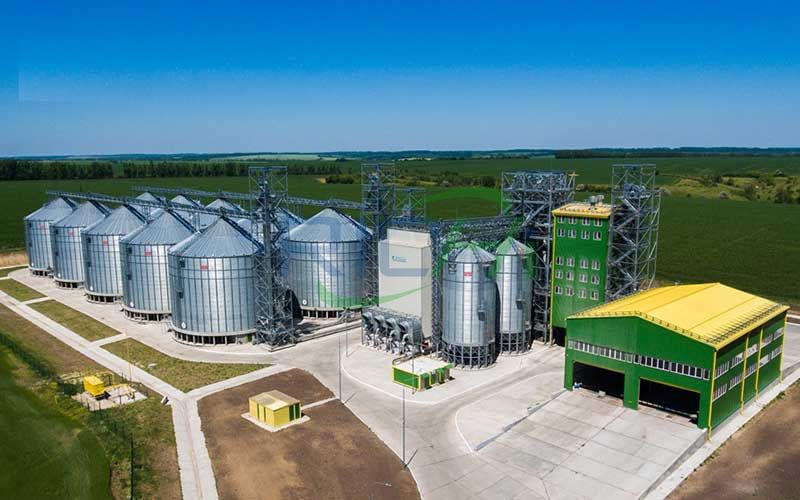

The main project of the project includes production equipment for livestock and poultry feed products (designed to produce 300,000 tons of compound feed per year) and workshops, and auxiliary projects include comprehensive office buildings, feed product testing laboratories, etc. The storage and transportation projects include raw material warehouses, vertical silos, and Finished product warehouses, etc., and public works include water and electricity supply facilities and fire-fighting facilities.

The total area of ​​the project is 33471m2, the total building area is 12923m2, and the vertical silo covers an area of ​​4484m2. The building covers an area of ​​11153m2, the green area rate is 8.6%, and 35 parking spaces (including 10 large truck parking spaces). The traditional and advanced compound feed processing and production technology adopted in the project does not involve material extraction technology, fermentation technology, and feed additive production. The project composition details are shown in Table 1-1:

Table 1-1 List of contents of this project

Serial number Engineering category Main construction content and scale Remarks
1 structural work The main workshop 1F occupies an area of ​​620m 2 , the feeding area occupies an area of ​​375m 2 The
production auxiliary room area occupies an area of ​​600m 2 (1F, small material room, machine repair room and steam pressure regulating distribution room)
Main workshop adopts steel frame workshop
2 Auxiliary engineering The office building has a construction area of ​​2650m 2 (3F), including a product testing laboratory covering an area of ​​120m 2 Framework
Weighbridge house, door, Taoism
3 Storage and Transportation Engineering 6 1500 cubic meters of vertical silos, 5 300 cubic meters of bulk warehouse
raw material warehouse (1F) construction area of ​​3024 square meters
finished product warehouse (2F) construction area of ​​3024 square meters
The second phase of the project reserves a 1F finished product warehouse with a construction area of ​​2450 square meters
Transportation of raw materials into and out of the factory area by car
4 Public works Water: using Chenglinji region within the municipal water supply network comprehensive bonded water, water is formed inside the annular project network , divided into domestic water systems, fire protection water systems The municipal water supply network in Chenglingji Comprehensive Bonded Zone has been completed, and this project is directly introduced by Fengtong Road’s main water supply network
Heating: In the quenching and tempering section of the engineering process, medium and low pressure steam is used, and the pressure of the gas source meets the requirements of the production process of the project. The pressure regulation, transmission and distribution are completed in the steam regulator room of the auxiliary production area.
The steam source comes from the central heating network of Huaneng Power Plant
The central heating pipe network in Chenglingji Comprehensive Bonded Zone has been completed. This project is directly transported by Huaneng Power Plant and the central heating pipe network is introduced through pipelines in the bonded area.
Drainage: The rain and sewage separation system is adopted. The wastewater in the plant can meet the water quality requirements of the sewage treatment plant in the Lingang New Area after being pretreated in the septic tank, and then be discharged into the municipal sewage pipe network of the comprehensive bonded zone and enter the sewage treatment plant in the Lingang New Area for advanced treatment; The rainwater is collected in the factory area and discharged into the rainwater pipe network of the comprehensive bonded area and finally discharged into Songyang Lake on the north side of the bonded area The municipal rainwater and sewage diversion pipe network in Chenglingji Comprehensive Bonded Zone has been completed. The sewage and drainage of this project is directly connected to the Fengtong Road sewage branch pipe, and the rainwater is directly connected to the Fengtong Road rainwater pipe network.
Power supply: The municipal power grid is directly connected to the power distribution room set up in the factory area, and the power supply branch network is formed in the factory area, which is divided into lighting systems and production power systems The municipal power supply network in Chenglingji Comprehensive Bonded Zone has been completed, and the project is directly introduced by the main power supply line of Fengtong Road
5 Environmental Engineering Exhaust Organized waste gas: various sections of the production line (raw material cleaning and receiving, crushing, coordination, granulation, finished product packaging) dust-containing waste gas is processed by the gas collection system + dust removal system, and then passed through a 15m high exhaust cylinder to meet the standard. Unorganized
waste gas: raw material transfer , Dissipate dust during loading and unloading process and cool off peculiar smell gas after granulation and tempering. The granulation cooling section reserves a cooling waste gas deodorizing water spray system to strengthen the ventilation and production operation management in the workshop

Waste water The domestic wastewater from employees in the office area is treated in a septic tank and then discharged into the municipal sewage pipe network in the bonded area of ​​Xingang District, Chenglingji; the workshop floor cleaning wastewater is treated by sedimentation and septic tank and then discharged together with domestic wastewater.
Steam condensate from the regional municipal sewage pipe network It belongs to clean wastewater. After precipitation treatment, it can be reused for regional greening and sprinkling and road dust removal and sprinkling. Part of it can be stored in the fire-fighting pool, and the excess can be discharged to the analysis and test wastewater generated by the rainwater collection pipe network laboratory in Chenglingji Free Trade Zone.
Indoor use special collection tank for collection, after neutralization, coagulation and sedimentation treatment, external septic tank and domestic sewage for unified treatment

noise Sound insulation room for mechanical equipment noise is constructed, advanced low-noise production equipment is selected, and shock-absorbing foundation is adopted for sound insulation and noise reduction, and the fan is equipped with a muffler
Solid waste The domestic garbage of the employees is cleaned and transported by the environmental sanitation department. The
waste raw materials and packaging materials are collected and sold. The material recycling company
collects the fine metal impurities generated in the handy section and sells them for comprehensive utilization; sand, gravel, soil and dust ash are transported together safely Dangerous solid waste generated in the landfill
laboratory is temporarily stored in the laboratory hazardous waste temporary storage cabinet, and is regularly delivered to a qualified unit for safe disposal


2. Main Raw Materials and Energy Consumption

The main raw materials used in the project are grain crops and their by-products (wheat, corn, soybean meal), which are common raw materials. The project is supporting the construction of a raw material warehouse of 3,024 square meters. On the north side of the raw material warehouse, 6 vertical silos with a volume of 1500 cubic meters and 5 bulk warehouses with a volume of 300 cubic meters are used for stacking the raw materials (wheat, corn) used in the project. The evaluation requires raw materials They shall not be piled up randomly in the factory area, and shall not be piled up in the open air. They shall be piled up to the designated place according to relevant storage requirements. This evaluation requires the owner not to use raw materials with peculiar smell, and the purchase of raw materials should meet the requirements of the compound feed process. The raw and auxiliary materials and energy consumption of the project are listed in Table 1-2.

Table 1-2 List of main raw and auxiliary materials and energy consumption

Serial number raw material name unit Annual consumption source Mode of transport
1 wheat Ten thousand tons 14 Foreign imports River-sea combined transportation, automobile transshipment
2 corn Ten thousand tons 10 Foreign imports River-sea combined transportation, automobile transshipment
3 Soybean meal Ten thousand tons 3 domestic purchase car
4 Compound premix feed Ten thousand tons 2.4 domestic purchase car
5 Zeolite powder Ten thousand tons 0.5 domestic purchase car
6 Antifungal agent Ten thousand tons 0.1 domestic purchase car
7 water Tons/year 1131 Park water supply network
8 Electricity Ten thousand kwh/year 746.5 Park grid
  steam Tons/year 18000 Central heating network

3. Main Raw and Auxiliary Cooking Properties

4. Main Production Equipment Configuration

The main equipment of the project includes raw material receiving system, crushing system, batching and mixing system, granulating system, finished product packaging system and related auxiliary systems. The main production equipment configuration list is shown in Table 1-3.

Table 1-3 List of main production equipment configuration of this project

Serial number Equipment name model single  Quantity Remarks
Raw material receiving system
   Feeding port and grid screen     2
2 Pulse dust collector TBLMa12 set 2
3 scraper machine TGSS5 station 1
4 scraper machine TGSU25 station 1
5 Self-cleaning bucket elevator TDTG50/23 station 1 Soybean meal transportation
6 Self-cleaning bucket elevator TDTG60/30 station 1 Wheat and corn transportation
7 Self-cleaning bucket elevator TDTG50/23 station 1
8 Material cleaning screen SQCY80 A 1
9 Stainless steel permanent magnet cylinder TCXT25 A 1
 0 Permanent magnet cylinder TCXT30 A 1
11 Yongtong TCXT25 A 1
12 Rotary distributor TFPX.6 station 3
13 Self-cleaning bucket elevator TDTG50/28 station 1
14 Powder sieve SQLZ75×65×140 A 1
15 Permanent magnet cylinder TCXT25 A 1
16 Rotary distributor TFPX.10 station 1
Crushing system
17 To be crushed 20m 3 ×6 A 6
18 Loading level device (mechanical)   station 4
19 Unloading level device (mechanical)   station 4
20 Pneumatic gate TZMQ 40×40 station 4
twenty one Buffer bucket   A 2
twenty two Impeller feeder SWLY6 A 2
twenty three Hammer Mill       SFSP66×125D station 1 Muyang products
twenty four Motor soft start device   set 2
 5 Hammer Mill       SFSP66×125D station 1 Muyang products
26 Settlement chamber (negative pressure)   A 2
27 Pulse dust collector TBLMa72 set
28 Pulse dust collector TBLMa72 set 1
29 Fan and silencer 6-45-7.5A station 2
30 Closed wind feeding auger TLSS32 A 2
31 Self-cleaning bucket elevator TDTG50/28 station 2
32 Rotating divider TFPX.10 station 2
Batching and mixing system
33 Ingredients warehouse 20m3 set twenty four
34 Loading level device (mechanical)   station twenty four
35 Unloading level device (mechanical)   station twenty four
36 Warehouse machine TWLL32 station 12
37 Warehouse machine TWLL25 station 8
38 Warehouse machine TWLL20 station 4
39 Ingredients PCS-3000 station 1
40 Ingredients PCS-2000 station 1
41 Pneumatic gate TZMQ60 A 2
42 Double-wing start butterfly valve DN600 A 2
43 Ingredients PCS-1500 station 1
44 Ingredients PCS-1000 station 1
 5 Pneumatic gate TZMQ60 A 2
 6 Fan 4-72-2.8A station 2
47 Pulse dust collector TBLMa9 set
48 Small material adding port   A 2
49 Pneumatic gate TZMQ32×32 station 2
50 Add check scale PCS-025 A 1
51 Pneumatic solenoid valve DN300 A 2
52 Double shaft high efficiency mixer SSHJ8 station 1
53 Double shaft high efficiency mixer SSHJ4 station 1
54 Buffer   A 2
55 Warehouse wall vibrator   A 2
56 Scraper TGSU32 station 1
57 scraper machine TGSU40 station 1
58 Self-cleaning hoist TDTG60/30 station 1
59 Self-cleaning hoist TDTG50/23 station 1
60 Permanent magnet cylinder TCXT30 A 2
61 Pneumatic tee TBDQ30*30/45 A 2
62 Rotary distributor TFPX.6 station 2
63 scraper machine TGSU32 station 1
64 Rotary distributor TFPX.10 station 1
65 scraper machine TGSS32 station 1
66 Rotary distributor TFPX.10 station 1
Granulation system
67 To be granulated bin 20m 3 A 4
68 Loading level device (mechanical)   station 4
69 Unloading level device (mechanical)   station 4
70 Pneumatic gate TZMQ 40×40 station 4
71 Buffer bucket   A 2
72 High-end Pellet Mill (double-layer stainless steel modulator) SZLH678 set 1 Modulator∅610*3600mm
73 High-end Pellet Mill (double-layer stainless steel modulator) SZLH508 set 1 Modulator∅460*3600mm
74 Stainless steel closed wind fan GFZ16 A 2 Equipped with shock absorber
75 Counter flow cooler  KLN8 station 1
76 Counter flow cooler SKLN10 station 1
77 Fan 4-72No.8C station 2 With silencer
78 Dedicated unloader 140mm station 2
79 Wind shut TGFY9 A 2
80 Three-roller frequency conversion granulator SSLG20*170 station 1
81 Self-cleaning bucket elevator TDTG50/23 station 2
82 Rotary classification screen SFJH165*2e station 2
83 Rotary distributor TFPX.10 station 2
84 Pneumatic tee TBDQ30*30/45 A 4
Finished product packaging system
85 Finished product warehouse 30m 3 A 12
86 Loading level device (mechanical)   station 12
87 Unloading level device (mechanical)   station 12
88 Pneumatic gate TZMQ 40×40 A 18
89 Microcomputer quantitative packaging scale SDBY-P-Ⅱ A 2
90 Sewing column   A 2
91 Sewing bag conveyor   station 2
92 Ton charter   station 1
auxiliary system
93 Pulse dust collector TBLMa42 set 1
94 Wind shut TGFY9 A 1
95 Fan 4-72-4.5A station 2
96 Wind shut TGFY7 A 2
97 Pulse dust collector TBLMa48 set 1
98 Grease adding system   set 2
99 Weighing Piping System   set 2
100 Air compressor   station 1
101 gas tank 3m 3 A 1
102 Freeze dryer   station 1
Control system and others
103 MCC/CCP system   set 1
104 Field control box   set 1
105 Air network system for suction, dust removal, cooling, etc.   set 1

The maximum design capacity of the equipment introduced in this project is 65t/h. The production working time of the project is reasonably allocated according to the customer’s order requirements. In general, the production time is calculated based on 300 working hours per year (day working time is 8h/shift, two shifts per day). It has the ability to meet the annual production capacity of 300,000 tons of compound feed.

5. LAbor Quota and Production System

The overall labor quota of the project is 45, including 30 production personnel, 4 management personnel, 8 purchasing and sales personnel, 1 customs declaration and commodity inspection personnel, and 2 financial and auxiliary personnel. The production management is an 8-hour work system, and the production and processing is a two-shift system a day, one shift is 8 hours, and the annual working day is 300 days. The entire main production workshop implements an eight-hour work system. There is a canteen and no dormitories for employees.

6. Investment Scale and Economic Benefits

The total investment of the project is 120 million yuan. After the project is completed and put into operation, it will produce 300,000 tons of combined livestock and poultry feed products. According to market analysis and production cost analysis, with reference to the current market sales, the annual sales revenue (including tax) of the project after reaching production capacity is 610 million yuan, the total profit in normal operating years is 39.71 million yuan, and the annual main business tax and additional expenses are about 79.3 million yuan.

7. Process Flow

The traditional and advanced compound feed processing and production technology adopted in this project does not involve the extraction process and fermentation process, and does not produce feed additives.

Brief description of process principle:

(1) Receiving and cleaning of raw materials

Raw material reception is divided into main raw material reception and side raw material reception. The main raw material reception refers to wheat and corn, and the side raw material reception refers to other raw materials except wheat and corn. The raw materials needed for production are directly sent to the warehouse for storage after being weighed and inspected by a truck scale; wheat and corn need to be processed in a vertical silo.

Receiving and cleaning of raw materials
Receiving and cleaning of raw materials

When transported by bulk cars, trains and ships, the materials are unloaded to the unloading pit after being weighed by a dump truck with a loadometer; the reception of packaging materials: manual handling and mechanical reception. During the handling and loading and unloading of raw materials, a small amount of fugitive dust will be generated. Therefore, the evaluation requires the owner to specify a unified raw material handling and loading and unloading location, and install dust suction at the floor discharge port, discharge port, bucket elevator, and scraper. Cover, collect the fugitive dust and enter it into the dust removal air net system for processing; the bagged raw materials in the factory are specially used for forklifts, combined with a small amount of manual handling, and through strengthening production management, limiting the speed of the control area of ​​the unorganized fugitive dust. Workers wear labor protection equipment and dust masks during the process of raw material receiving, transfer, loading and unloading, and concentrated water spraying around the loading and unloading points to prevent the dust from spreading. Through the establishment of green dust barriers around the warehouse, the dust can be controlled within the scope of the workshop and avoid the surrounding air. environmental impact.

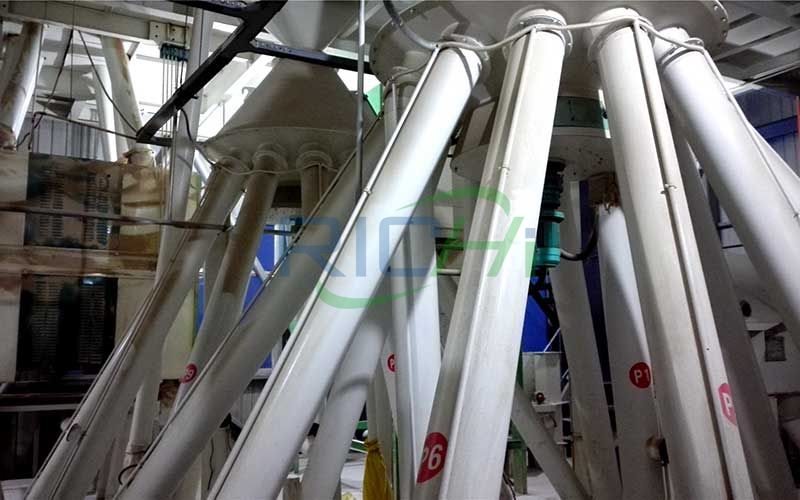

Impurities in feed ingredients not only affect the quality of feed products, but also directly affect feed processing equipment and personal safety. In severe cases, the entire equipment may be destroyed and affect the smooth progress of feed production, so it should be removed in time. The cleaning equipment of the feed factory is mainly screening and magnetic separation equipment. The screening equipment removes large and long debris such as stones, mud and sack pieces in the raw materials. The magnetic separation equipment mainly removes iron impurities. In this project, the raw materials that need to be crushed will enter the production workshop through the conveying equipment, and then enter the warehouse to be crushed after the impurities are removed by the primary cleaning screen and the iron impurities are removed by the magnetic separator. The raw materials that do not need to be crushed enter the production workshop through the conveying equipment, and are sent to different batching bins by the distributor after the impurities are removed by the primary cleaning screen and the iron impurities are removed by the magnetic separator.

(2) Crushing of raw materials

The raw materials in the bin to be crushed are crushed to the qualified particle size requirements by a crusher, and then distributed to the batching bin for storage by the conveying equipment. The feed crushing process used in this project is a cyclic secondary crushing process. In the single-cycle pulverization process, a pulverizer is used to pulverize the material and then be sieved, and the screened material is returned to the original pulverizer for pulverization.

(3) Ingredient mixing process

According to the requirements of the formula, various raw materials participating in the ingredients enter the mixer in turn through the computer-controlled ingredient scale. In the batching process, a computerized automatic batching system is used for batching weighing to ensure the accuracy of the batching and shorten the batching time. This project uses the commonly used multi-warehouse counting scale ingredients, and the measured materials are grouped according to their physical characteristics or weighing range, and each group is equipped with a corresponding measuring device. The mixing process is continuous mixing. The continuous mixing process is to measure the various feed components simultaneously and separately and continuously to form a stream containing various components in proportion. When this stream enters the continuous mixer, Continuous mixing to form a uniform stream. The advantage of this process is that it can be carried out continuously and is easily connected with continuous operations such as pulverization and granulation, and does not require frequent operations during production.

Additives and other auxiliary materials with less dosage are weighed by the automatic batching weighing system and then put into the mixer. Various raw materials are mixed in the mixer, and various powdered or liquid raw materials (grease, etc.) are added during the mixing process. The mixed finished powder can be refined and granulated according to needs, or directly enter the finished product warehouse for packing and storage, or enter the bulk finished product warehouse for loading with a bulk truck.

(4) Tempering

Quenching and tempering is the most important link in the pelleting process. The quality of conditioning directly determines the quality of pellet feed. The purpose of tempering is to adjust the mixed dry powder material into a powdered feed with a certain moisture and humidity, which is beneficial to granulation. This project uses steam to complete the tempering process. The modulator is a double-layer stainless steel structure and belongs to the granulator. The ancillary equipment of the modulator is insulated with fresh steam after pressure adjustment by steam distribution in the plant area (the tempering temperature is controlled at about 80 ℃), and the inside of the modulator uses fresh steam to directly contact the material. The feed formed in the modulator absorbs the heat and moisture in the water vapor to make itself soft, which is beneficial to the process of pellet formation.

This project is located in the Comprehensive Bonded Zone of Xingang District, Chenglingji, and belongs to the central heating area of ​​Huaneng Power Plant. The steam is supplied from the central heating pipe network and is uniformly transmitted and distributed to the quenching and tempering section through the distribution and regulation of the pressure in the plant.

(5) Granulation

The uniformly tempered material is first removed by the security magnet, and then evenly distributed between the pressing and mixing and the pressing die, so that the material enters the pressing area from the pressing area of ​​the feeding area, and is clamped into the die hole by the pressing roller to continuously squeeze open. It is divided into a columnar feed, which is cut into pellet-like feed by a cutter fixed on the outside of the die as the die rotates.

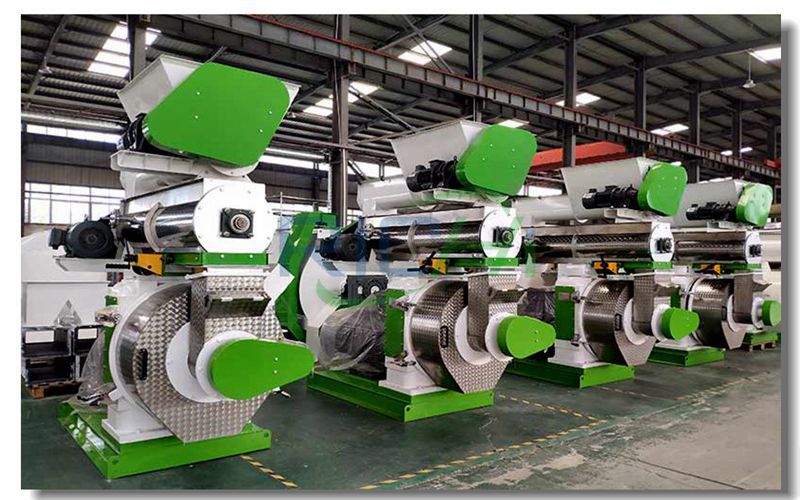

Feed Pellet Machine
Feed Pellet Machine

(6) Cooling

In the pelleting process, the high temperature and high humidity steam is introduced and the material is extruded to generate a lot of heat, so that when the pellet feed comes out of the pelletizer, the water content reaches 16%~18%, and the temperature is as high as 75℃-85. ℃, under this condition, the pellet feed is easy to deform and break, and it will also cause adhesion and mildew during storage. The engineering cooling uses a countercurrent cooling system. The moisture of the material is reduced to below 14%, and the temperature is reduced to below 8°C higher than the air temperature.

(7) Packaging

The cooled materials enter the packaging section. The project adopts two packaging methods, bulk and bagged, and different packaging methods are used according to the needs of downstream customers. The finished bagged products enter the finished product warehouse, and the bulk materials are directly transported by cars.

The above is the article for you: 1000 Tons/Day Large-scale Cattle Sheep and Chicken Feed Pellet Mill Production and Processing Project. If you are interested in our products or project solutions, please contact us. We will give you the best product quality and the best price. Email: enquiry@pellet-richi.com
